SKU: UCP218D1-NTN

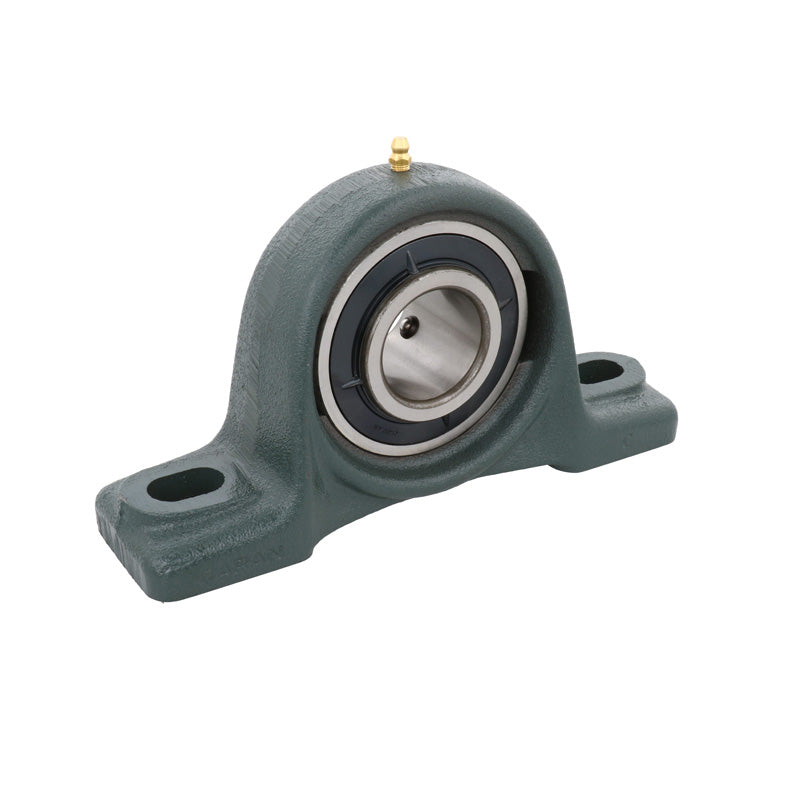

NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
- Regular price
- $247.60 ex VAT
- Sale price
- $247.60
- Regular price
-
In stock
Quantity Price Breaks
10+
$220.36
19+
$207.98
29+
$205.51
39+
$203.03
49+
$200.56
74+
$198.08
99+
$185.70
199+
$183.22
249+
$180.75
499+
$178.27
999+
$173.32
SKU:
UCP218D1-NTN
NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
- Regular price
- $247.60 ex VAT
- Sale price
- $247.60
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 90mm |
| H | = | 101.6mm |
| L | = | 327mm |
| J | = | 262mm |
| A | = | 88mm |
| N | = | 27mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 33mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 200mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 90mm | |
| B | = | 96mm |
| S | = | 39.7mm |
| Fixing bolt | = | M22 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 106 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 71.5 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 5 kN | |
| --- | = | Unit information |
| Mass | = | 13 kg |
