SKU: UCP217D1-NTN

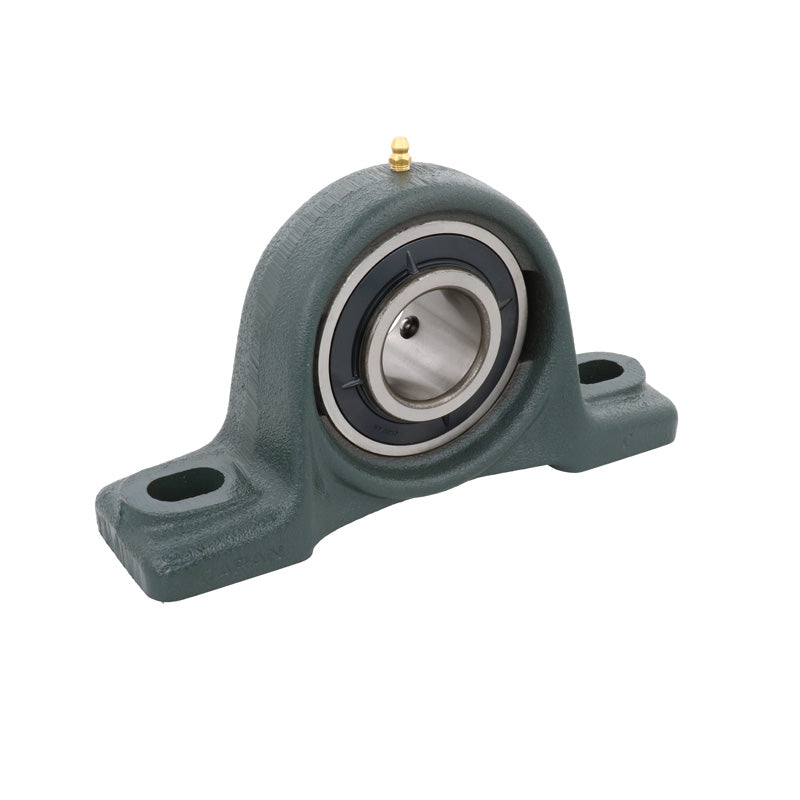

NTN UCP217D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- $207.14 ex VAT
- Sale price
- $207.14
- Regular price
-
In stock
Quantity Price Breaks
10+
$184.35
19+
$174.00
29+
$171.93
39+
$169.85
49+
$167.78
74+
$165.71
99+
$155.36
199+
$153.28
249+
$151.21
499+
$149.14
999+
$145.00
SKU:
UCP217D1-NTN
NTN UCP217D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- $207.14 ex VAT
- Sale price
- $207.14
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 85mm |
| H | = | 95.2mm |
| L | = | 310mm |
| J | = | 247mm |
| A | = | 83mm |
| N | = | 25mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 32mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 187mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 85mm | |
| B | = | 85.7mm |
| S | = | 34.1mm |
| Fixing bolt | = | M20 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 92 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 64 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 4.6 kN | |
| --- | = | Unit information |
| Mass | = | 11 kg |
