SKU: UCP216D1-NTN

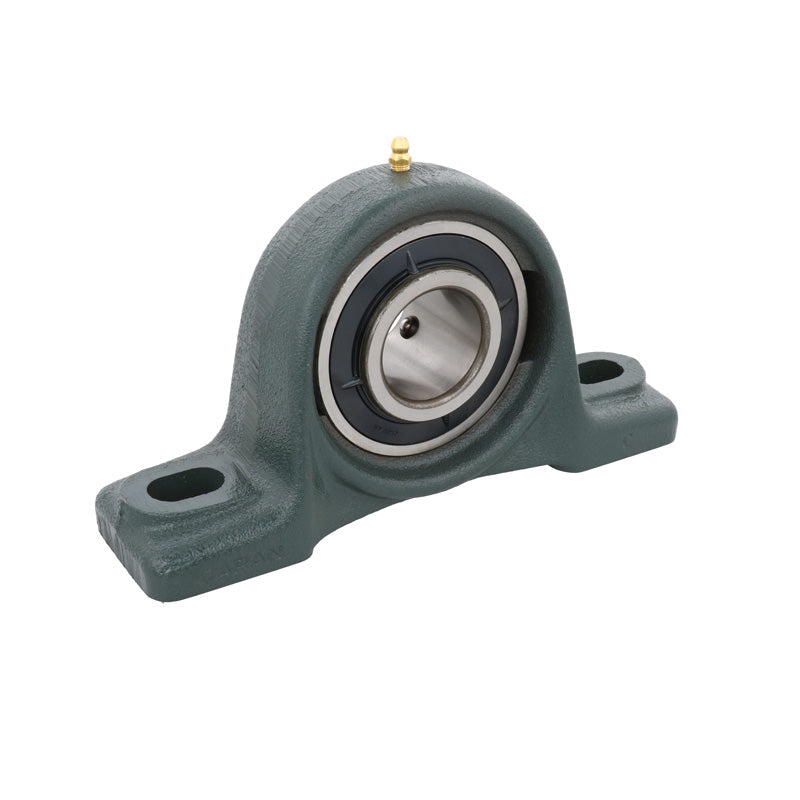

NTN UCP216D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
- Regular price
- $169.27 ex VAT
- Sale price
- $169.27
- Regular price
-
In stock
Quantity Price Breaks
10+
$150.65
19+
$142.19
29+
$140.49
39+
$138.80
49+
$137.11
74+
$135.42
99+
$126.95
199+
$125.26
249+
$123.57
499+
$121.87
999+
$118.49
SKU:
UCP216D1-NTN
NTN UCP216D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
- Regular price
- $169.27 ex VAT
- Sale price
- $169.27
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 80mm |
| H | = | 88.9mm |
| L | = | 292mm |
| J | = | 232mm |
| A | = | 78mm |
| N | = | 25mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 175mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 85mm | |
| B | = | 82.6mm |
| S | = | 33.3mm |
| Fixing bolt | = | M20 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 80.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 53 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.95 kN | |
| --- | = | Unit information |
| Mass | = | 8.7 kg |
