SKU: UCP214D1-NTN

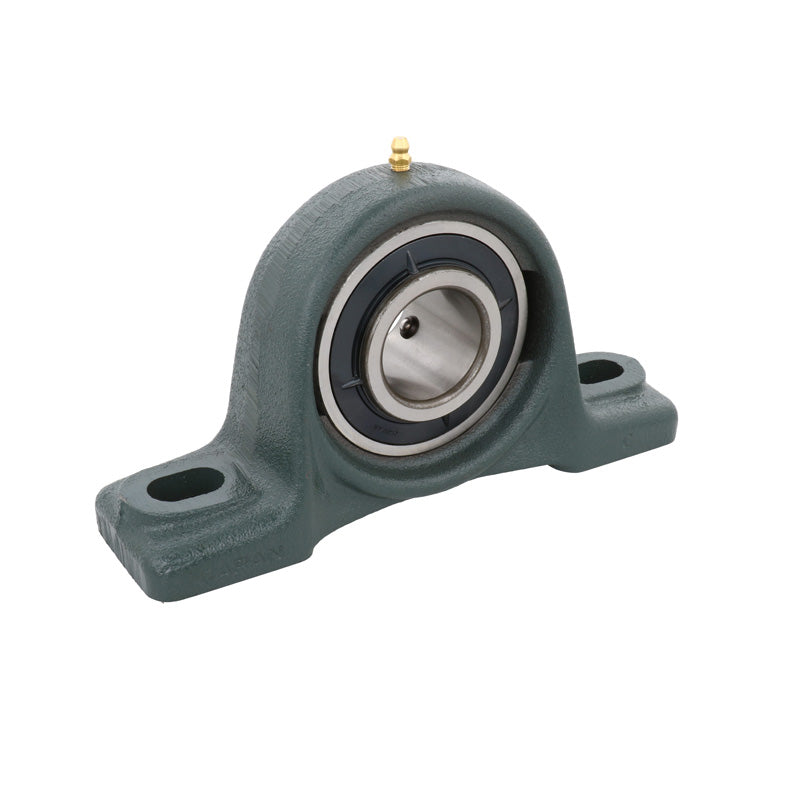

NTN UCP214D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
- Regular price
- $122.50 ex VAT
- Sale price
- $122.50
- Regular price
-
In stock
Quantity Price Breaks
10+
$109.03
19+
$102.90
29+
$101.68
39+
$100.45
49+
$99.23
74+
$98.00
99+
$91.88
199+
$90.65
249+
$89.43
499+
$88.20
999+
$85.75
SKU:
UCP214D1-NTN
NTN UCP214D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
- Regular price
- $122.50 ex VAT
- Sale price
- $122.50
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 70mm |
| H | = | 79.4mm |
| L | = | 266mm |
| J | = | 210mm |
| A | = | 72mm |
| N | = | 25mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 27mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 157mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 77mm | |
| B | = | 74.6mm |
| S | = | 30.2mm |
| Fixing bolt | = | M20 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 69 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 44 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.45 kN | |
| --- | = | Unit information |
| Mass | = | 6.5 kg |
