SKU: UCP212CO-SNR

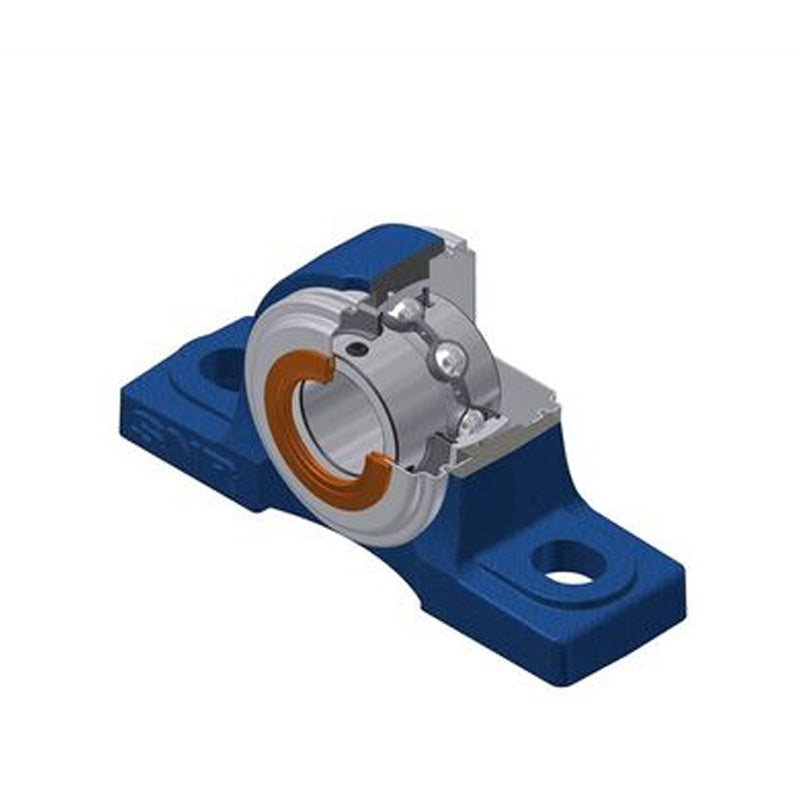

SNR UCP212CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- $112.45 ex VAT
- Sale price
- $112.45
- Regular price
-
In stock
Quantity Price Breaks
10+
$100.08
19+
$94.46
29+
$93.33
39+
$92.21
49+
$91.08
74+
$89.96
99+
$84.34
199+
$83.21
249+
$82.09
499+
$80.96
999+
$78.72
SKU:
UCP212CO-SNR
SNR UCP212CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- $112.45 ex VAT
- Sale price
- $112.45
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

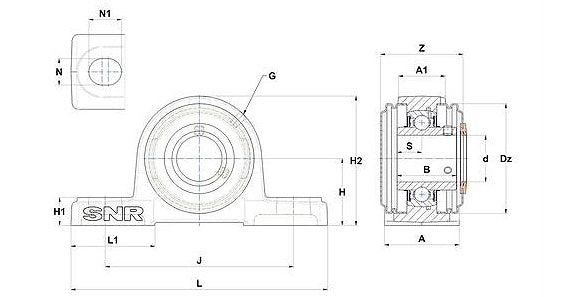

| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 70mm |
| A1 | = | 44mm |
| B | = | 65.1mm |
| H | = | 69.8mm |
| H1 | = | 25mm |
| H2 | = | 138mm |
| J | = | 184mm |
| L | = | 241mm |
| L1 | = | 70mm |
| N | = | 20mm |
| N1 | = | 25mm |
| S | = | 25.4mm |
| Dz | = | 120mm |
| Z | = | 59.6mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 5.083 kg |
| Recommended tightening torque for set screw | = | 22 Nm |
