SKU: UCP212CC-SNR

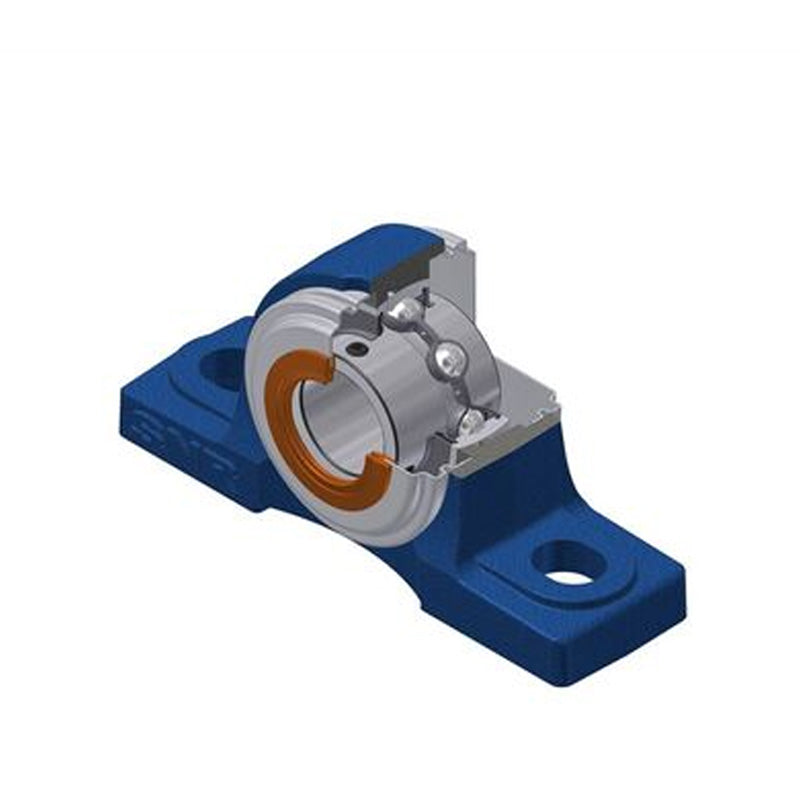

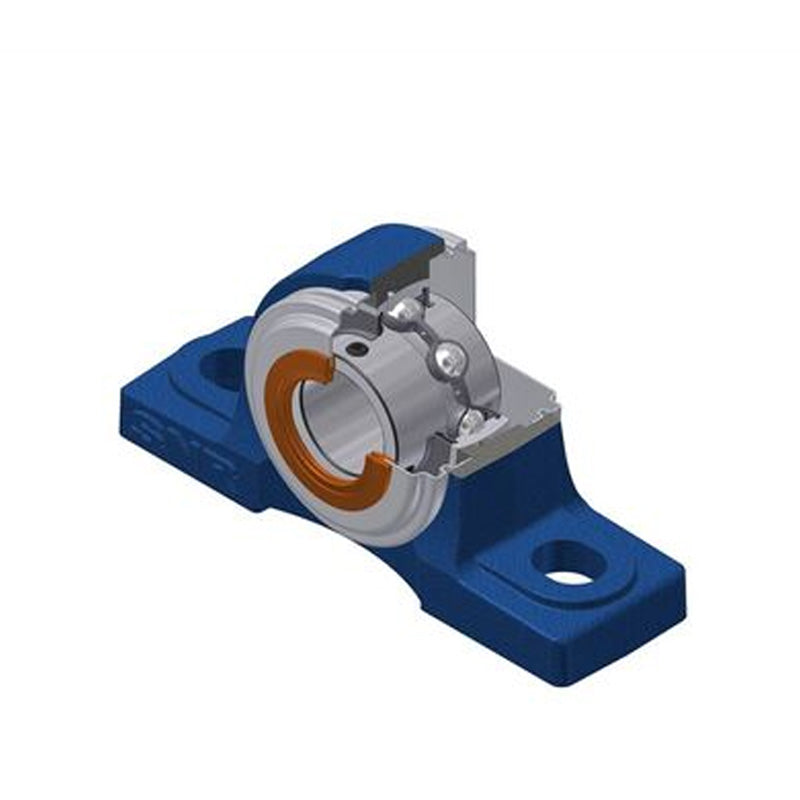

SNR UCP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Closed Version
- Regular price
- $110.29 ex VAT
- Sale price
- $110.29
- Regular price
-
In stock
Quantity Price Breaks
10+
$98.16
19+
$92.64
29+
$91.54
39+
$90.44
49+
$89.33
74+
$88.23
99+
$82.72
199+
$81.61
249+
$80.51
499+
$79.41
999+
$77.20
SKU:
UCP212CC-SNR
SNR UCP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Closed Version
- Regular price
- $110.29 ex VAT
- Sale price
- $110.29
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 70mm |
| A1 | = | 44mm |
| B | = | 65.1mm |
| H | = | 69.8mm |
| H1 | = | 25mm |
| H2 | = | 138mm |
| J | = | 184mm |
| L | = | 241mm |
| L1 | = | 70mm |
| N | = | 20mm |
| N1 | = | 25mm |
| S | = | 25.4mm |
| Dz | = | 120mm |
| Z | = | 59.6mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 5.26 kg |
| Recommended tightening torque for set screw | = | 22 Nm |
