SKU: UCP212-207D1-NTN

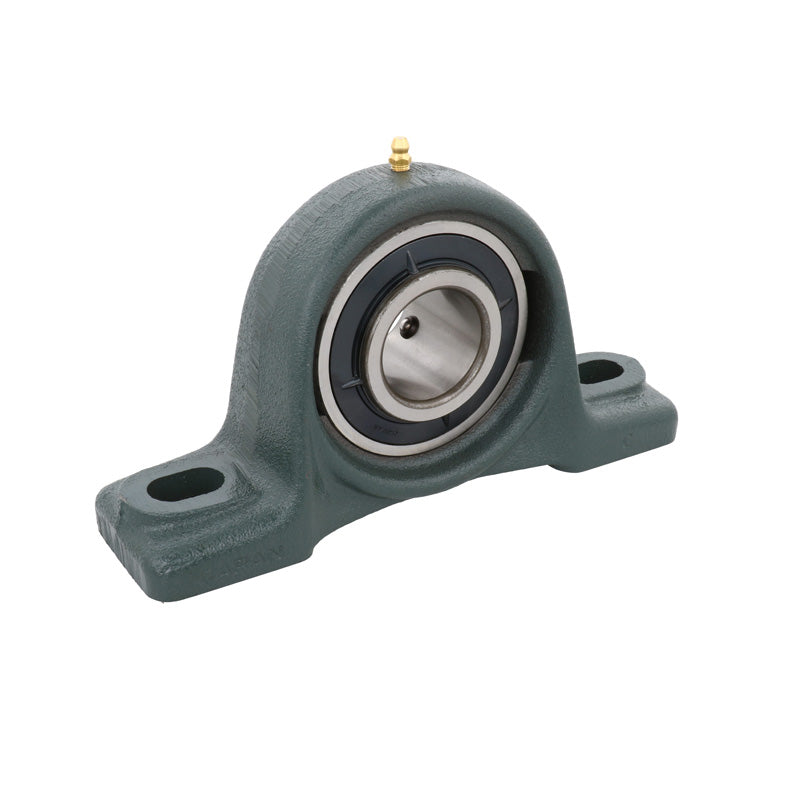

NTN UCP212-207D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $126.96 ex VAT
- Sale price
- $126.96
- Regular price
-
In stock
Quantity Price Breaks
10+
$112.99
19+
$106.65
29+
$105.38
39+
$104.11
49+
$102.84
74+
$101.57
99+
$95.22
199+
$93.95
249+
$92.68
499+
$91.41
999+
$88.87
SKU:
UCP212-207D1-NTN
NTN UCP212-207D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $126.96 ex VAT
- Sale price
- $126.96
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 2-7/16 inch |
| H | = | 2-3/4 inch |
| L | = | 9-1/2 inch |
| J | = | 7-1/4 inch |
| A | = | 2-3/4 inch |
| N | = | 25/32 inch |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 29/32 inch | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 31/32 inch | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 5-7/16 inch | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 2-3/4 inch | |
| B | = | 2.563 inch |
| S | = | 1 inch |
| Fixing bolt | = | 5/8 inch |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 58 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 36 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 2.83 kN | |
| --- | = | Unit information |
| Mass | = | 10 lbs |
