SKU: UCP211-35N-SNR
SNR UCP211-35N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 2-3/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $76.12 ex VAT
- Sale price
- $76.12
- Regular price
-
In stock
Quantity Price Breaks
10+
$67.75
19+
$63.94
29+
$63.18
39+
$62.42
49+
$61.66
74+
$60.90
99+
$57.09
199+
$56.33
249+
$55.57
499+
$54.81
999+
$53.28
SKU:
UCP211-35N-SNR
SNR UCP211-35N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 2-3/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $76.12 ex VAT
- Sale price
- $76.12
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

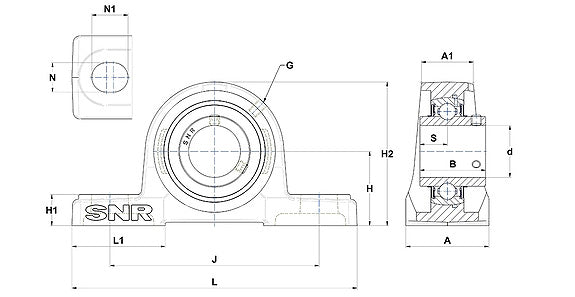

| --- | = | Dimensions |
| Shaft diameter d | = | 2-3/16 inch |
| A | = | 60mm |
| A1 | = | 40mm |
| B | = | 55.6mm |
| H | = | 63.5mm |
| H1 | = | 22mm |
| H2 | = | 126mm |
| J | = | 171mm |
| L | = | 219mm |
| L1 | = | 70mm |
| N | = | 20mm |
| N1 | = | 25mm |
| S | = | 22.2mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 3.5 kg |
| Recommended tightening torque for set screw | = | 16.8 Nm |
