SKU: UCP210L3-SNR

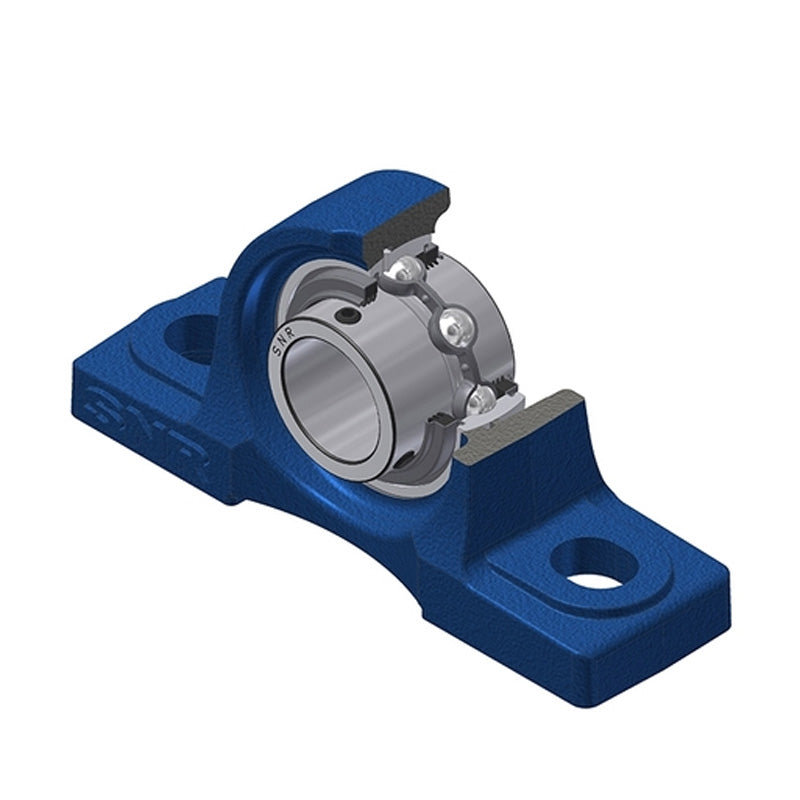

SNR UCP210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal
- Regular price
- $117.75 ex VAT
- Sale price
- $117.75
- Regular price
-
In stock
Quantity Price Breaks
10+
$104.80
19+
$98.91
29+
$97.73
39+
$96.56
49+
$95.38
74+
$94.20
99+
$88.31
199+
$87.14
249+
$85.96
499+
$84.78
999+
$82.43
SKU:
UCP210L3-SNR
SNR UCP210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal
- Regular price
- $117.75 ex VAT
- Sale price
- $117.75
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

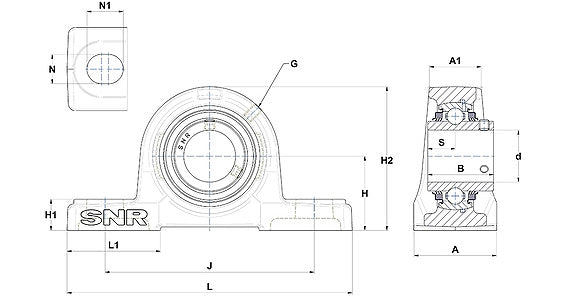

| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 60mm |
| A1 | = | 39mm |
| B | = | 51.6mm |
| H | = | 57.2mm |
| H1 | = | 22mm |
| H2 | = | 114mm |
| J | = | 159mm |
| L | = | 206mm |
| L1 | = | 65mm |
| N | = | 20mm |
| N1 | = | 25mm |
| S | = | 19mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 3 kg |
| Recommended tightening torque for set screw | = | 22 Nm |
