SKU: UCP210D1-NTN

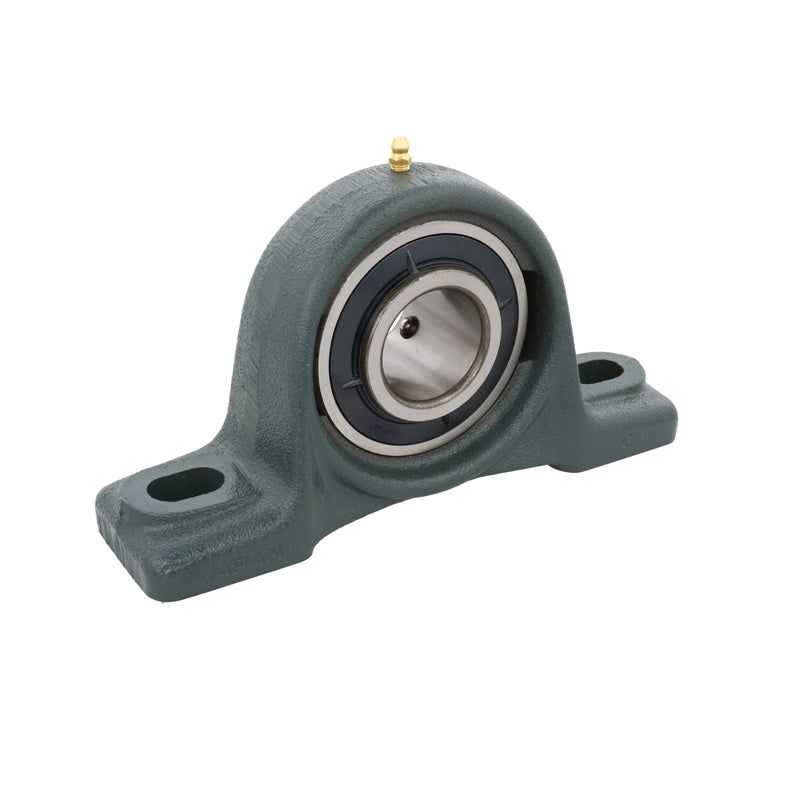

NTN UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
- Regular price
- $58.79 ex VAT
- Sale price
- $58.79
- Regular price
-
In stock
Quantity Price Breaks
10+
$52.32
19+
$49.38
29+
$48.80
39+
$48.21
49+
$47.62
74+
$47.03
99+
$44.09
199+
$43.50
249+
$42.92
499+
$42.33
999+
$41.15
SKU:
UCP210D1-NTN
NTN UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
- Regular price
- $58.79 ex VAT
- Sale price
- $58.79
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| H | = | 57.2mm |
| L | = | 206mm |
| J | = | 159mm |
| A | = | 60mm |
| N | = | 20mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 23mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 21mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 114mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 65mm | |
| B | = | 51.6mm |
| S | = | 19mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 39 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 23.2 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.82 kN | |
| --- | = | Unit information |
| Mass | = | 2.7 kg |
