SKU: UCP209CO-SNR

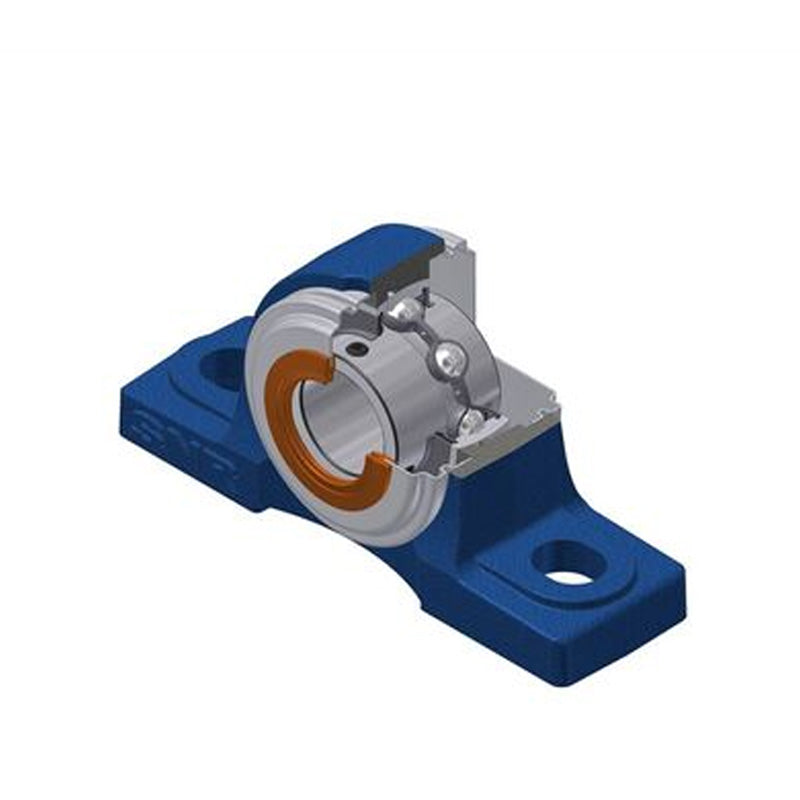

SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- $83.25 ex VAT
- Sale price
- $83.25
- Regular price
-
In stock
Quantity Price Breaks
10+
$74.09
19+
$69.93
29+
$69.10
39+
$68.27
49+
$67.43
74+
$66.60
99+
$62.44
199+
$61.61
249+
$60.77
499+
$59.94
999+
$58.28
SKU:
UCP209CO-SNR
SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- $83.25 ex VAT
- Sale price
- $83.25
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 54mm |
| A1 | = | 37mm |
| B | = | 49.2mm |
| H | = | 54mm |
| H1 | = | 20mm |
| H2 | = | 108mm |
| J | = | 146mm |
| L | = | 190mm |
| L1 | = | 60mm |
| N | = | 17mm |
| N1 | = | 23mm |
| S | = | 19mm |
| Dz | = | 95mm |
| Z | = | 47.1mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 2.359 kg |
| Recommended tightening torque for set screw | = | 11.5 Nm |
