SKU: UCP207-20T20-SNR

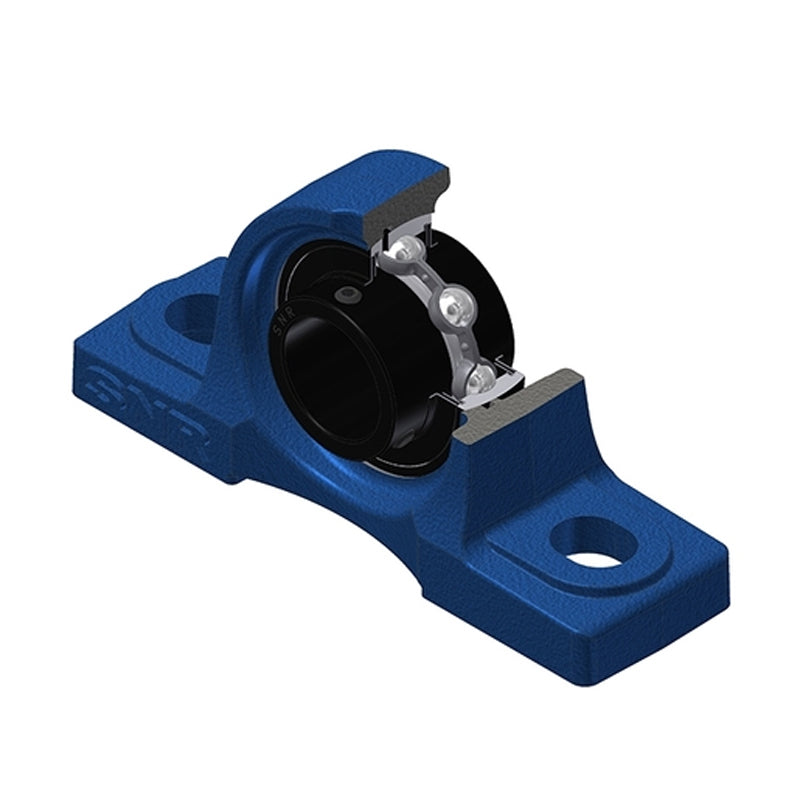

SNR UCP207-20T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- $109.50 ex VAT
- Sale price
- $109.50
- Regular price
-
In stock
Quantity Price Breaks
10+
$97.46
19+
$91.98
29+
$90.89
39+
$89.79
49+
$88.70
74+
$87.60
99+
$82.13
199+
$81.03
249+
$79.94
499+
$78.84
999+
$76.65
SKU:
UCP207-20T20-SNR
SNR UCP207-20T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- $109.50 ex VAT
- Sale price
- $109.50
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 1-1/4 inch |
| A | = | 48mm |
| A1 | = | 31mm |
| B | = | 42.9mm |
| H | = | 47.6mm |
| H1 | = | 19mm |
| H2 | = | 94mm |
| J | = | 127mm |
| L | = | 167mm |
| L1 | = | 54mm |
| N | = | 17mm |
| N1 | = | 21mm |
| S | = | 17.5mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 200& |
| deg | = | C |
| Mass | = | 1.73 kg |
| Recommended tightening torque for set screw | = | 8 Nm |
