SKU: UCP206-104D1-NTN

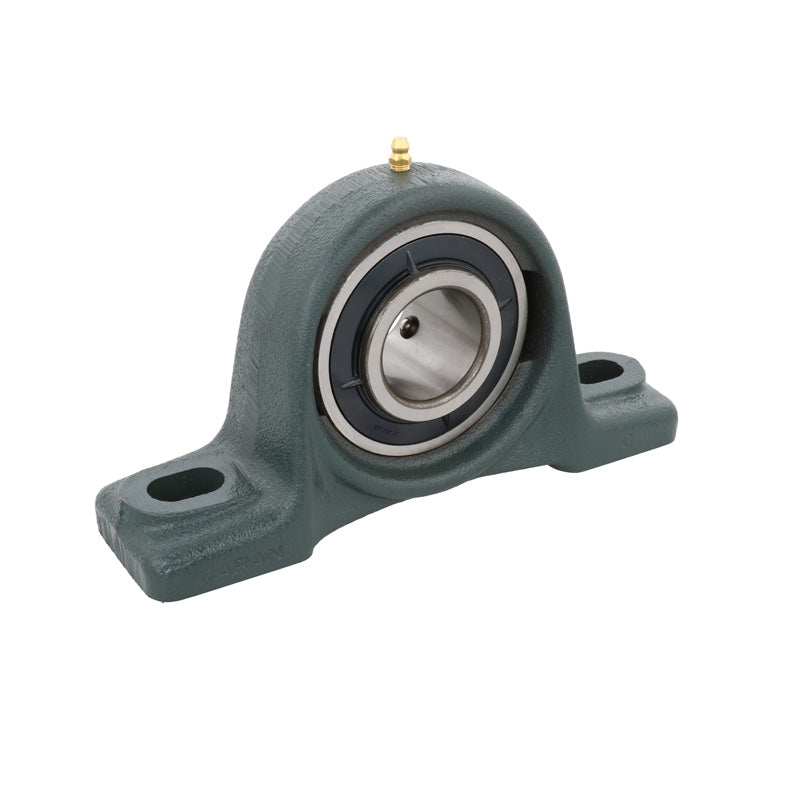

NTN UCP206-104D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
- Regular price
- $42.32 ex VAT
- Sale price
- $42.32
- Regular price
-
In stock
Quantity Price Breaks
10+
$37.66
19+
$35.55
29+
$35.13
39+
$34.70
49+
$34.28
74+
$33.86
99+
$31.74
199+
$31.32
249+
$30.89
499+
$30.47
999+
$29.62
SKU:
UCP206-104D1-NTN
NTN UCP206-104D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert
- Regular price
- $42.32 ex VAT
- Sale price
- $42.32
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 1-1/4 inch |
| H | = | 1-11/16 inch |
| L | = | 6-1/2 inch |
| J | = | 4-3/4 inch |
| A | = | 1-7/8 inch |
| N | = | 21/32 inch |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 25/32 inch | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 21/32 inch | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 3-9/32 inch | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 2-1/8 inch | |
| B | = | 1.5 inch |
| S | = | 0.626 inch |
| Fixing bolt | = | 1/2 inch |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 21.6 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 11.3 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 0.795 kN | |
| --- | = | Unit information |
| Mass | = | 3.1 lbs |
