SKU: UCP204-SNR
SNR UCP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
- Regular price
- $29.84 ex VAT
- Sale price
- $29.84
- Regular price
-
In stock
Quantity Price Breaks
10+
$26.56
19+
$25.07
29+
$24.77
39+
$24.47
49+
$24.17
74+
$23.87
99+
$22.38
199+
$22.08
249+
$21.78
499+
$21.48
999+
$20.89
SKU:
UCP204-SNR
SNR UCP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
- Regular price
- $29.84 ex VAT
- Sale price
- $29.84
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

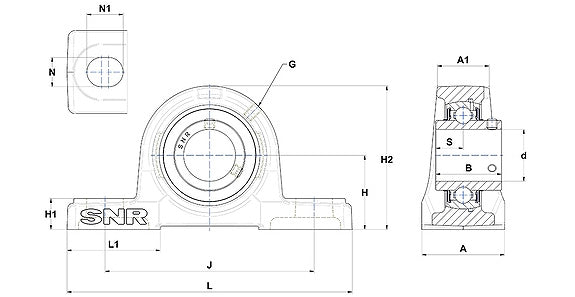

| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 38mm |
| A1 | = | 22mm |
| B | = | 31mm |
| H | = | 33.3mm |
| H1 | = | 15mm |
| H2 | = | 65mm |
| J | = | 95mm |
| L | = | 127mm |
| L1 | = | 42mm |
| N | = | 13mm |
| N1 | = | 19mm |
| S | = | 12.7mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 0.67 kg |
| Recommended tightening torque for set screw | = | 5.5 Nm |
