SKU: UCP.312

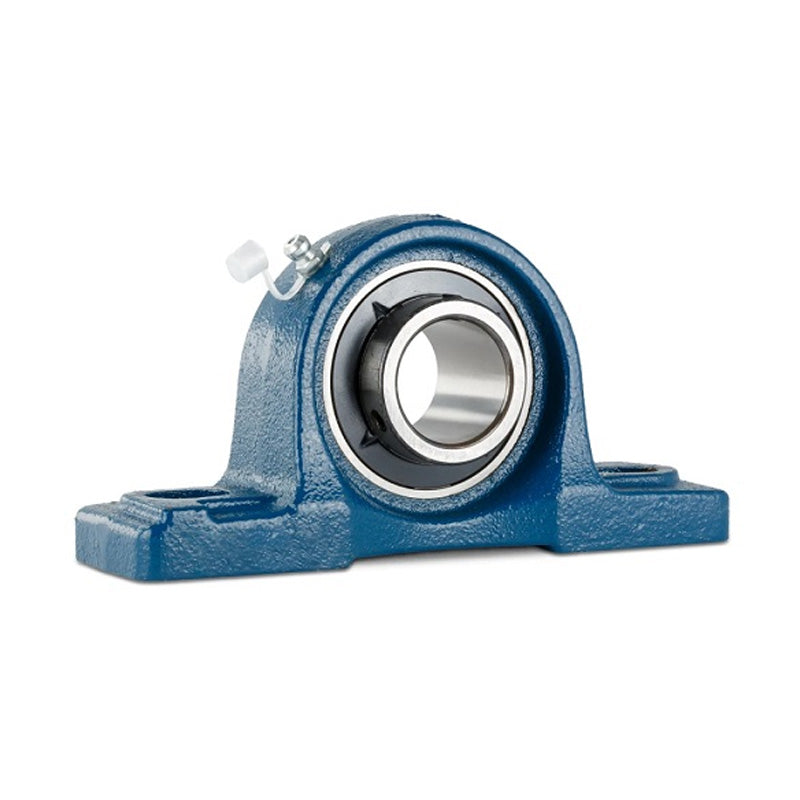

UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
- Regular price
- $119.47 ex VAT
- Sale price
- $119.47
- Regular price
-
In stock
Quantity Price Breaks
10+
$106.33
19+
$100.35
29+
$99.16
39+
$97.97
49+
$96.77
74+
$95.58
99+
$89.60
199+
$88.41
249+
$87.21
499+
$86.02
999+
$83.63
SKU:
UCP.312
UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
- Regular price
- $119.47 ex VAT
- Sale price
- $119.47
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 60mm |
| h | = | 85mm |
| a | = | 330mm |
| e | = | 250mm |
| b | = | 85mm |
| s2 | = | 38mm |
| s1 | = | 25mm |
| g | = | 32mm |
| w | = | 165mm |
| b1 | = | 71mm |
| n | = | 26mm |
| Bolt | = | 20mm |
| Weight | = | 9.4 kg |
| Dynamic load | = | 6420 kgf |
| Static load | = | 4960 kgf |
