SKU: UCP.311

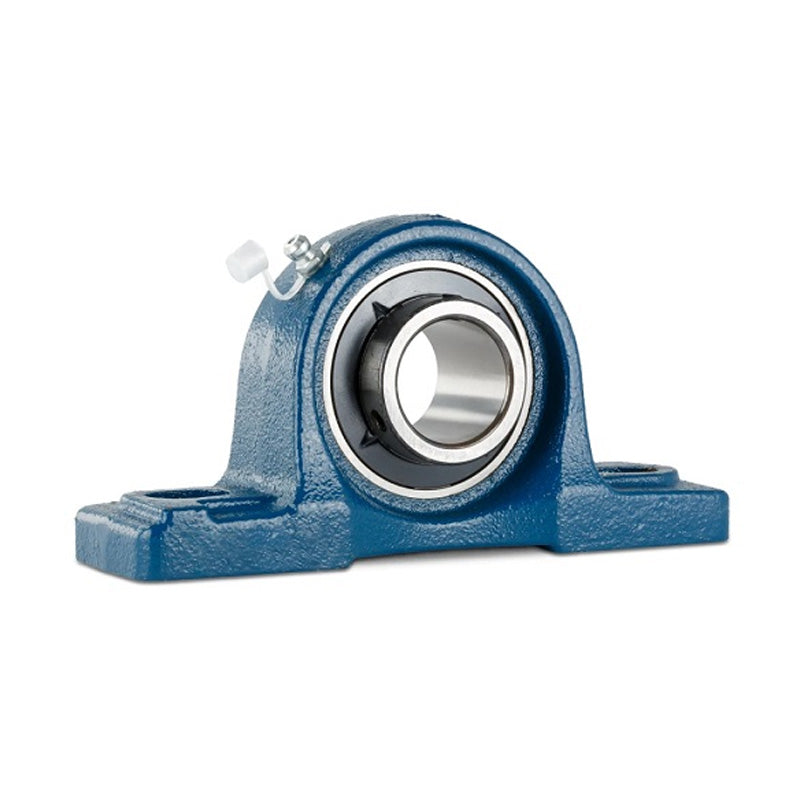

UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
- Regular price
- $100.88 ex VAT
- Sale price
- $100.88
- Regular price
-
Not in stock
Quantity Price Breaks
3
$89.78
4
$84.74
9
$83.73
19
$82.72
49
$81.71
99
$80.70
499
$75.66
999
$74.65
1999
$73.64
2999
$72.63
4999
$70.62
SKU:
UCP.311
UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
- Regular price
- $100.88 ex VAT
- Sale price
- $100.88
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 55mm |
| h | = | 80mm |
| a | = | 310mm |
| e | = | 236mm |
| b | = | 80mm |
| s2 | = | 38mm |
| s1 | = | 20mm |
| g | = | 30mm |
| w | = | 154mm |
| b1 | = | 66mm |
| n | = | 25mm |
| Bolt | = | 16mm |
| Weight | = | 7.8 kg |
| Dynamic load | = | 5620 kgf |
| Static load | = | 5280 kgf |
