SKU: UCP.310

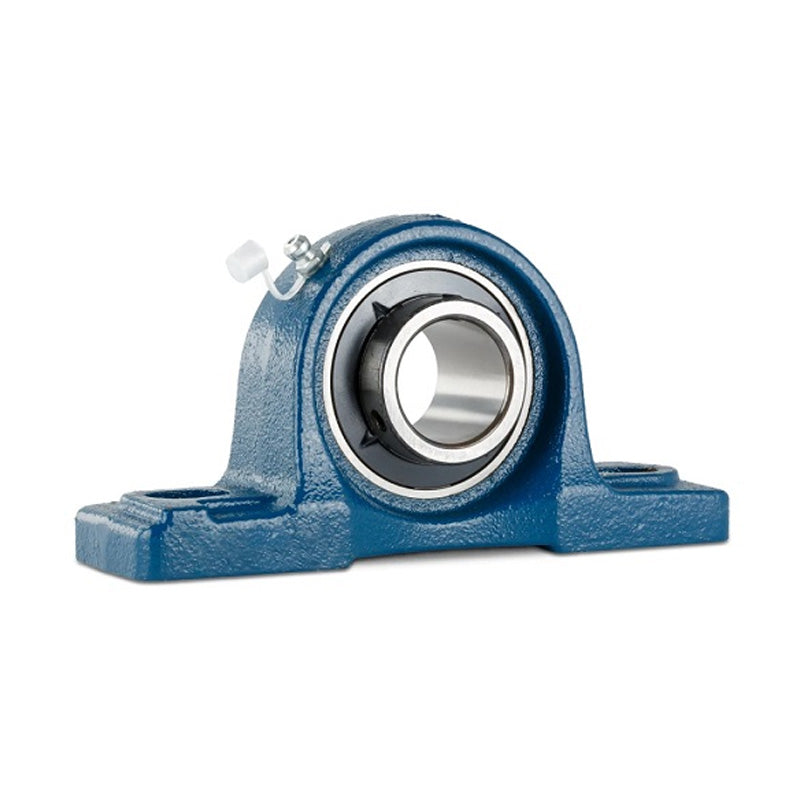

UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
- Regular price
- $77.43 ex VAT
- Sale price
- $77.43
- Regular price
-
In stock
Quantity Price Breaks
3
$68.91
4
$65.04
9
$64.27
19
$63.49
49
$62.72
99
$61.94
499
$58.07
999
$57.30
1999
$56.52
2999
$55.75
4999
$54.20
SKU:
UCP.310
UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
- Regular price
- $77.43 ex VAT
- Sale price
- $77.43
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 50mm |
| h | = | 75mm |
| a | = | 275mm |
| e | = | 212mm |
| b | = | 75mm |
| s2 | = | 35mm |
| s1 | = | 20mm |
| g | = | 27mm |
| w | = | 143mm |
| b1 | = | 61mm |
| n | = | 22mm |
| Bolt | = | 16mm |
| Weight | = | 6.4 kg |
| Dynamic load | = | 4850 kgf |
| Static load | = | 3640 kgf |
