SKU: UCP.309

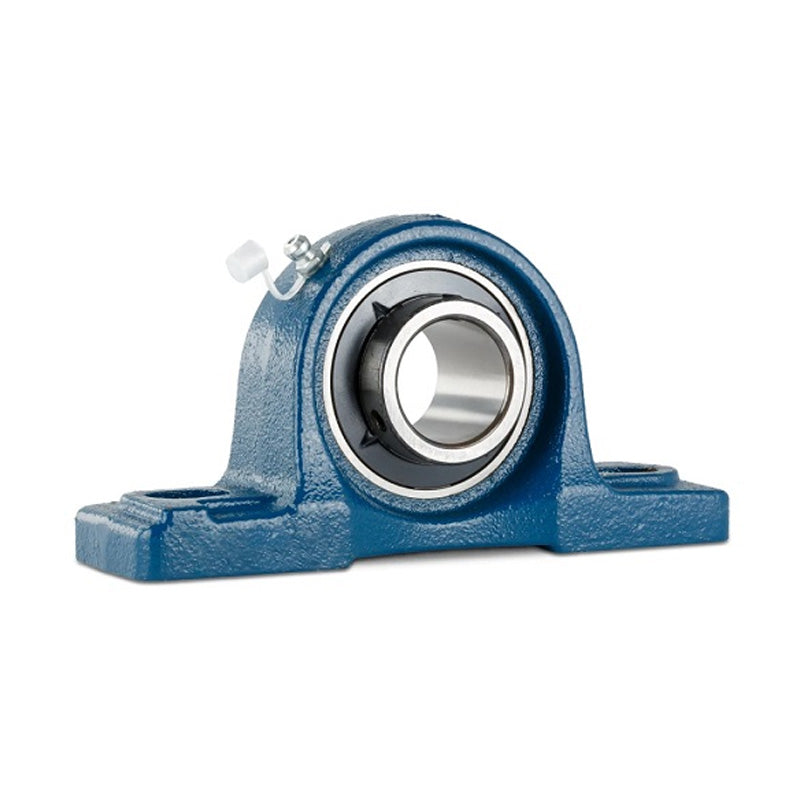

UCP309 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 45mm Bore Insert
- Regular price
- $63.91 ex VAT
- Sale price
- $63.91
- Regular price
-
In stock
Quantity Price Breaks
10+
$56.88
19+
$53.68
29+
$53.05
39+
$52.41
49+
$51.77
74+
$51.13
99+
$47.93
199+
$47.29
249+
$46.65
499+
$46.02
999+
$44.74
SKU:
UCP.309
UCP309 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 45mm Bore Insert
- Regular price
- $63.91 ex VAT
- Sale price
- $63.91
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 45mm |
| h | = | 67mm |
| a | = | 245mm |
| e | = | 190mm |
| b | = | 67mm |
| s2 | = | 30mm |
| s1 | = | 20mm |
| g | = | 24mm |
| w | = | 129mm |
| b1 | = | 57mm |
| n | = | 22mm |
| Bolt | = | 16mm |
| Weight | = | 4.7 kg |
| Dynamic load | = | 4150 kgf |
| Static load | = | 3060 kgf |
