SKU: UCP.308

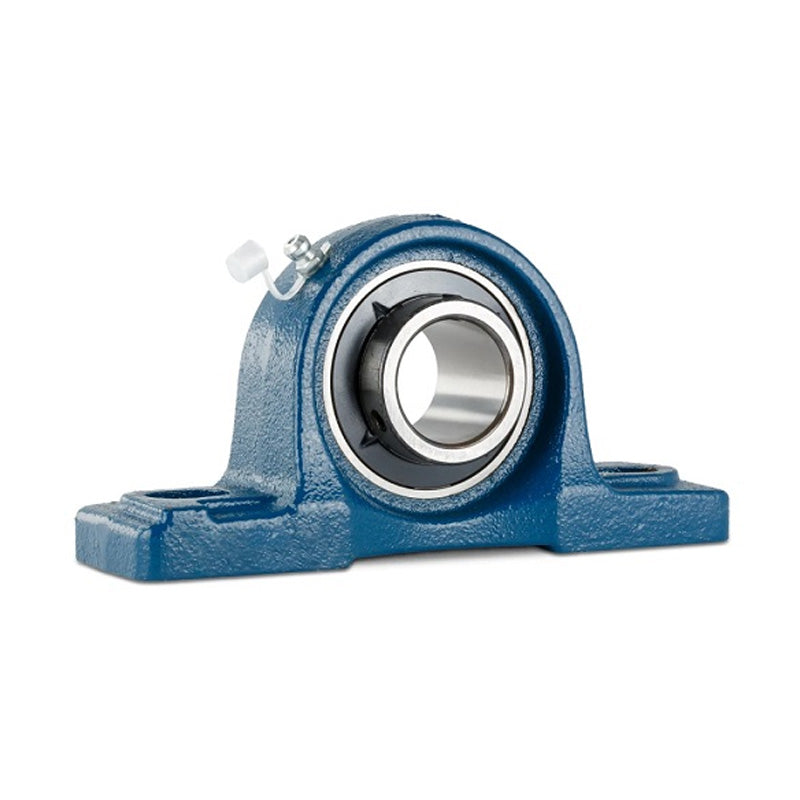

UCP308 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 40mm Bore Insert
- Regular price
- $50.42 ex VAT
- Sale price
- $50.42
- Regular price
-
In stock
Quantity Price Breaks
3
$44.87
4
$42.35
9
$41.85
19
$41.34
49
$40.84
99
$40.34
499
$37.82
999
$37.31
1999
$36.81
2999
$36.30
4999
$35.29
SKU:
UCP.308
UCP308 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 40mm Bore Insert
- Regular price
- $50.42 ex VAT
- Sale price
- $50.42
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 40mm |
| h | = | 60mm |
| a | = | 220mm |
| e | = | 170mm |
| b | = | 60mm |
| s2 | = | 27mm |
| s1 | = | 17mm |
| g | = | 22mm |
| w | = | 116mm |
| b1 | = | 52mm |
| n | = | 19mm |
| Bolt | = | 14mm |
| Weight | = | 3.6 kg |
| Dynamic load | = | 3200 kgf |
| Static load | = | 2280 kgf |
