SKU: UCP.307

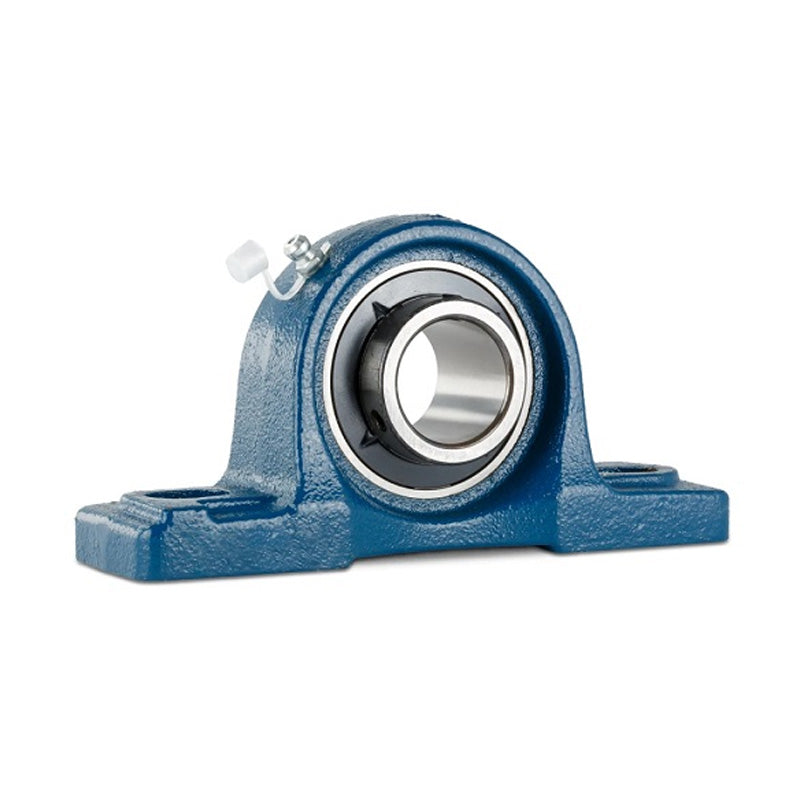

UCP307 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 35mm Bore Insert
- Regular price
- $41.93 ex VAT
- Sale price
- $41.93
- Regular price
-
In stock
Quantity Price Breaks
10+
$37.32
19+
$35.22
29+
$34.80
39+
$34.38
49+
$33.96
74+
$33.54
99+
$31.45
199+
$31.03
249+
$30.61
499+
$30.19
999+
$29.35
SKU:
UCP.307
UCP307 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 35mm Bore Insert
- Regular price
- $41.93 ex VAT
- Sale price
- $41.93
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 35mm |
| h | = | 56mm |
| a | = | 210mm |
| e | = | 160mm |
| b | = | 56mm |
| s2 | = | 25mm |
| s1 | = | 17mm |
| g | = | 20mm |
| w | = | 106mm |
| b1 | = | 48mm |
| n | = | 18mm |
| Bolt | = | 14mm |
| Weight | = | 2.8 kg |
| Dynamic load | = | 2620 kgf |
| Static load | = | 1830 kgf |
