SKU: UCP.306

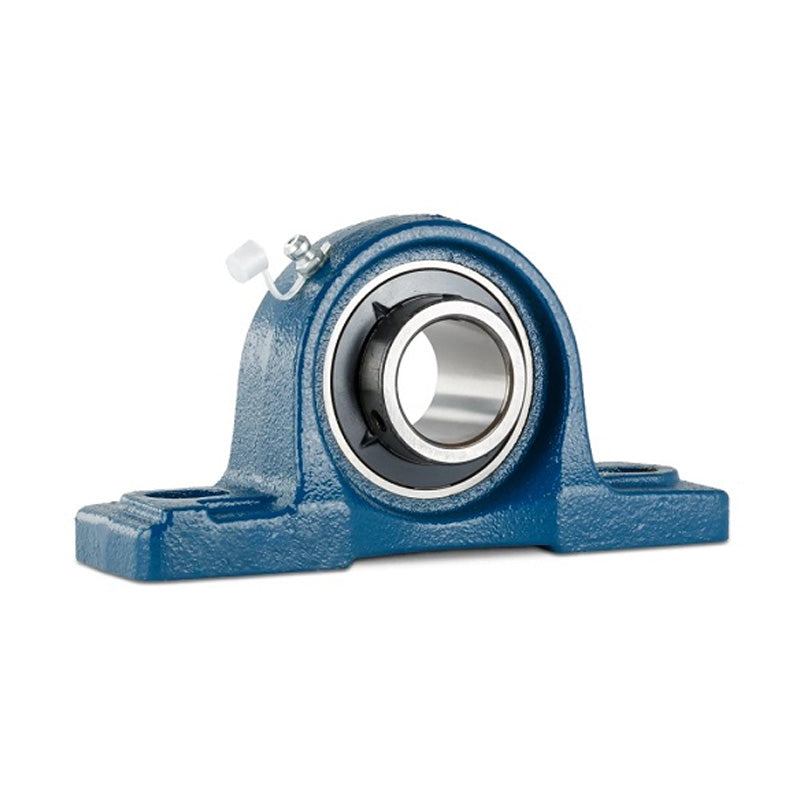

UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
- Regular price
- $36.97 ex VAT
- Sale price
- $36.97
- Regular price
-
In stock
Quantity Price Breaks
10+
$32.90
19+
$31.05
29+
$30.69
39+
$30.32
49+
$29.95
74+
$29.58
99+
$27.73
199+
$27.36
249+
$26.99
499+
$26.62
999+
$25.88
SKU:
UCP.306
UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
- Regular price
- $36.97 ex VAT
- Sale price
- $36.97
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 30mm |
| h | = | 50mm |
| a | = | 180mm |
| e | = | 140mm |
| b | = | 50mm |
| s2 | = | 20mm |
| s1 | = | 17mm |
| g | = | 18mm |
| w | = | 95mm |
| b1 | = | 43mm |
| n | = | 17mm |
| Bolt | = | 14mm |
| Weight | = | 2.1 kg |
| Dynamic load | = | 2119 kgf |
| Static load | = | 1445 kgf |
