SKU: UCP.305

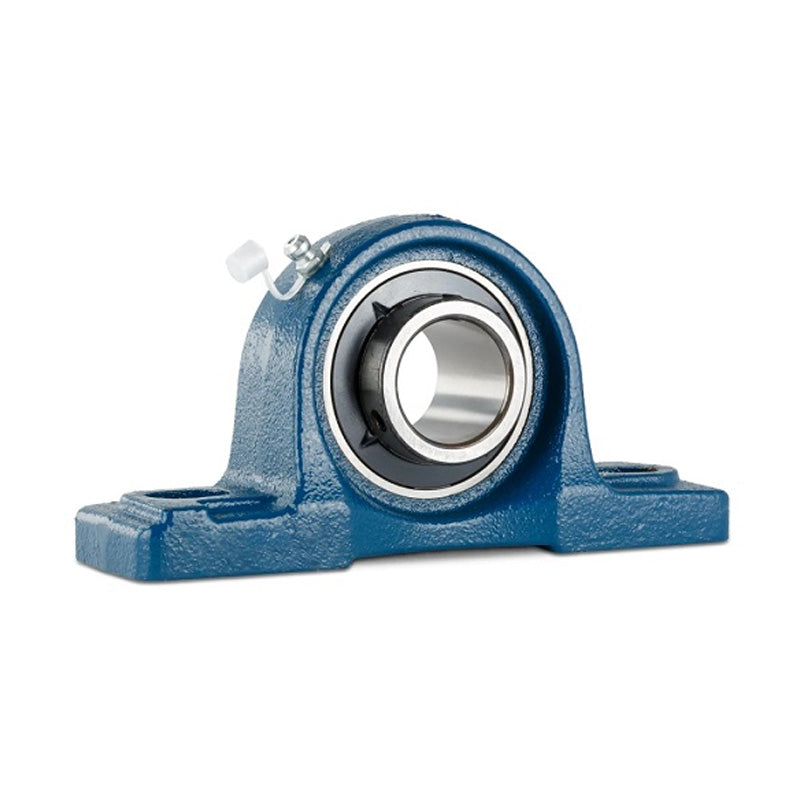

UCP305 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 25mm Bore Insert
- Regular price
- $28.15 ex VAT
- Sale price
- $28.15
- Regular price
-
In stock
Quantity Price Breaks
10+
$25.05
19+
$23.65
29+
$23.36
39+
$23.08
49+
$22.80
74+
$22.52
99+
$21.11
199+
$20.83
249+
$20.55
499+
$20.27
999+
$19.71
SKU:
UCP.305
UCP305 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 25mm Bore Insert
- Regular price
- $28.15 ex VAT
- Sale price
- $28.15
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

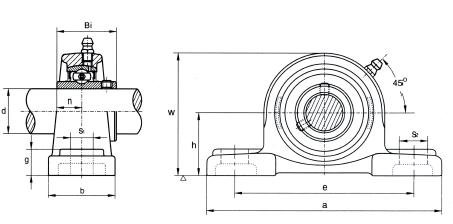

Technical
| d | = | 25mm |
| h | = | 45mm |
| a | = | 175mm |
| e | = | 132mm |
| b | = | 45mm |
| s2 | = | 20mm |
| s1 | = | 17mm |
| g | = | 65mm |
| w | = | 85mm |
| b1 | = | 38mm |
| n | = | 15mm |
| Bolt | = | 14mm |
| Weight | = | 1.6 kg |
| Dynamic load | = | 1760 kgf |
| Static load | = | 1160 kgf |
