SKU: UCP.213.TS.CHAL

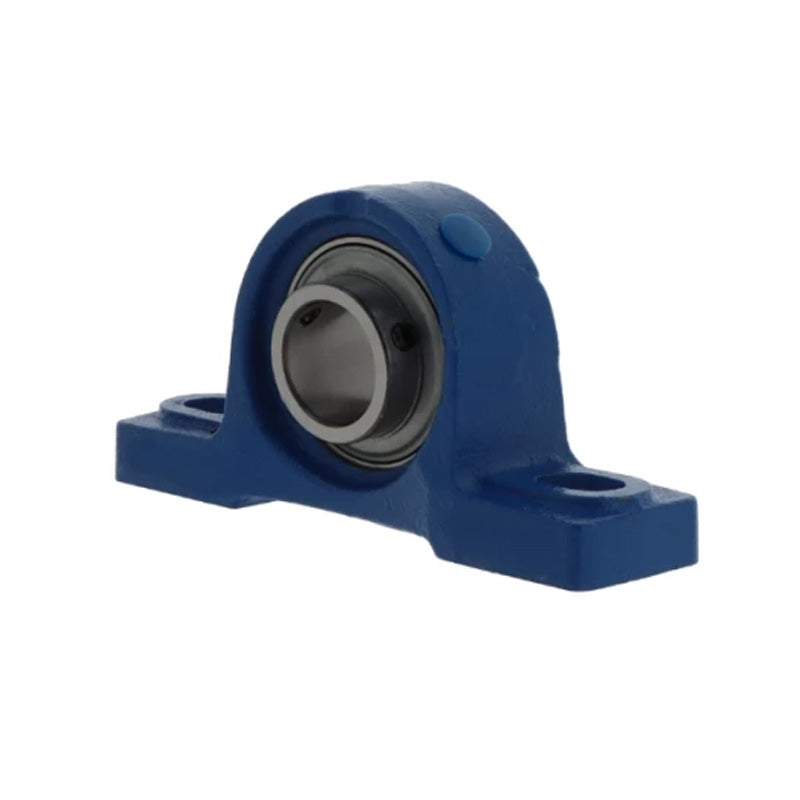

Challenge / FK UCP213 Metric Cast Iron Two Bolt Pillow Block Housing with 65mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $205.04 ex VAT
- Sale price
- $205.04
- Regular price
-
Quantity Price Breaks
Challenge / FK UCP213 Metric Cast Iron Two Bolt Pillow Block Housing with 65mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $205.04 ex VAT
- Sale price
- $205.04
- Regular price
-
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

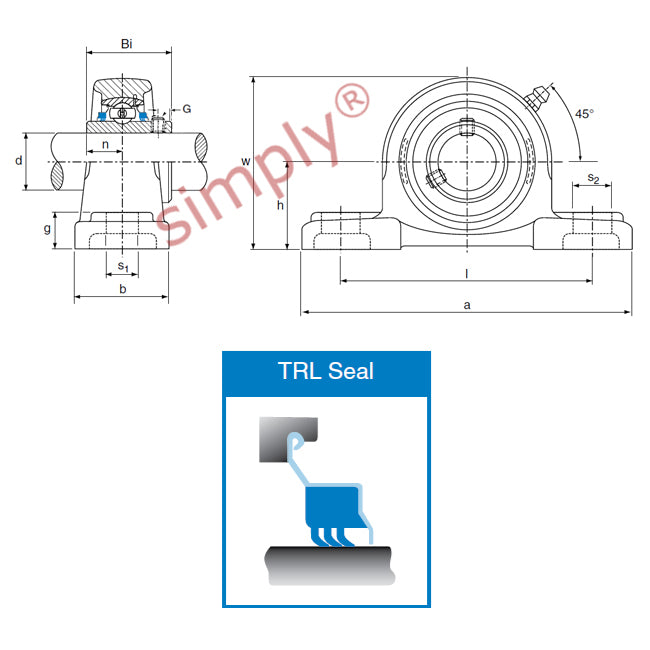

Technical
| Shaft Diameter d | = | 65mm |
| Casting Centre Line Height h | = | 76.2mm |
| Casting Length a | = | 265mm |
| Recommended Bolt Centres l | = | 203mm |
| Casting Width b | = | 70mm |
| Slot Length s< | = | sub> |
| 2< | = | /sub> |
| = | 28mm | |
| Slot Width s< | = | sub> |
| 1< | = | /sub> |
| = | 25mm | |
| Foot Height g | = | 27mm |
| Overall Height w | = | 150mm |
| Bearing Insert Width Bi | = | 65.1mm |
| Back of Bearing to Centre Line n | = | 25.4mm |
| Bolt Size | = | M20 |
| Grub Screws x 2 | = | M10x1.25mm |
| Load Rating (Dynamic) | = | 4480kg |
| Load Rating (Static) | = | 3470kg |
| Max Speed | = | 1400 rev/min |
| Grease Nipple Thread Size | = | M8 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UC213 |
| Housing No | = | P213 |
