SKU: UCP.209.TS.CHAL

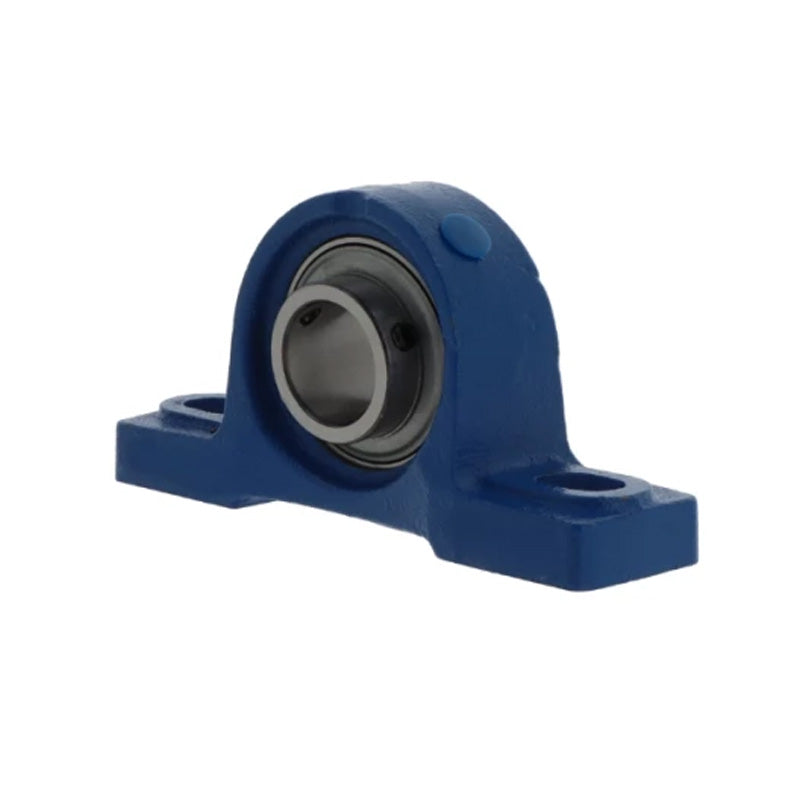

Challenge / FK UCP209 Metric Cast Iron Two Bolt Pillow Block Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $79.23 ex VAT
- Sale price
- $79.23
- Regular price
-
Quantity Price Breaks
Challenge / FK UCP209 Metric Cast Iron Two Bolt Pillow Block Housing with 45mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $79.23 ex VAT
- Sale price
- $79.23
- Regular price
-
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 45mm |
| Casting Centre Line Height h | = | 54mm |
| Casting Length a | = | 190mm |
| Recommended Bolt Centres l | = | 146mm |
| Casting Width b | = | 54mm |
| Slot Length s< | = | sub> |
| 2< | = | /sub> |
| = | 20mm | |
| Slot Width s< | = | sub> |
| 1< | = | /sub> |
| = | 17mm | |
| Foot Height g | = | 20mm |
| Overall Height w | = | 106mm |
| Bearing Insert Width Bi | = | 49.2mm |
| Back of Bearing to Centre Line n | = | 19mm |
| Bolt Size | = | M14 |
| Grub Screws x 2 | = | M8x1.0mm |
| Load Rating (Dynamic) | = | 2560kg |
| Load Rating (Static) | = | 1810kg |
| Max Speed | = | 1900 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UC209 |
| Housing No | = | P209 |
