SKU: UCHB210D1-NTN

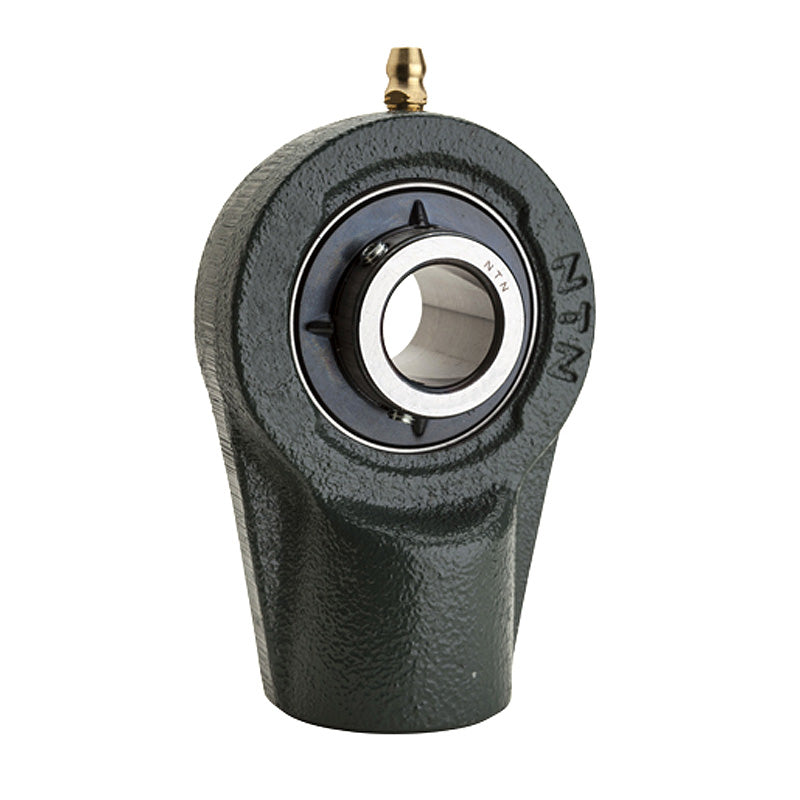

NTN UCHB210D1 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $75.96 ex VAT
- Sale price
- $75.96
- Regular price
-
In stock
Quantity Price Breaks
10+
$67.60
19+
$63.81
29+
$63.05
39+
$62.29
49+
$61.53
74+
$60.77
99+
$56.97
199+
$56.21
249+
$55.45
499+
$54.69
999+
$53.17
SKU:
UCHB210D1-NTN
NTN UCHB210D1 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $75.96 ex VAT
- Sale price
- $75.96
- Regular price
-
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

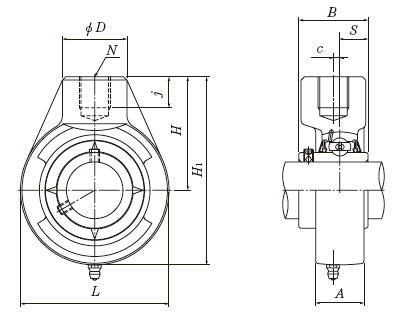

Technical
| Shaft diameter | = | 50mm |
| L | = | 118mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 142mm | |
| c | = | 5mm |
| A | = | 37mm |
| H | = | 83mm |
| N | = | RP1 |
| D | = | 48mm |
| j | = | 21mm |
| B | = | 51.6mm |
| S | = | 19mm |
| Mass | = | 2.2 kg |
