SKU: UCFX08D1-NTN

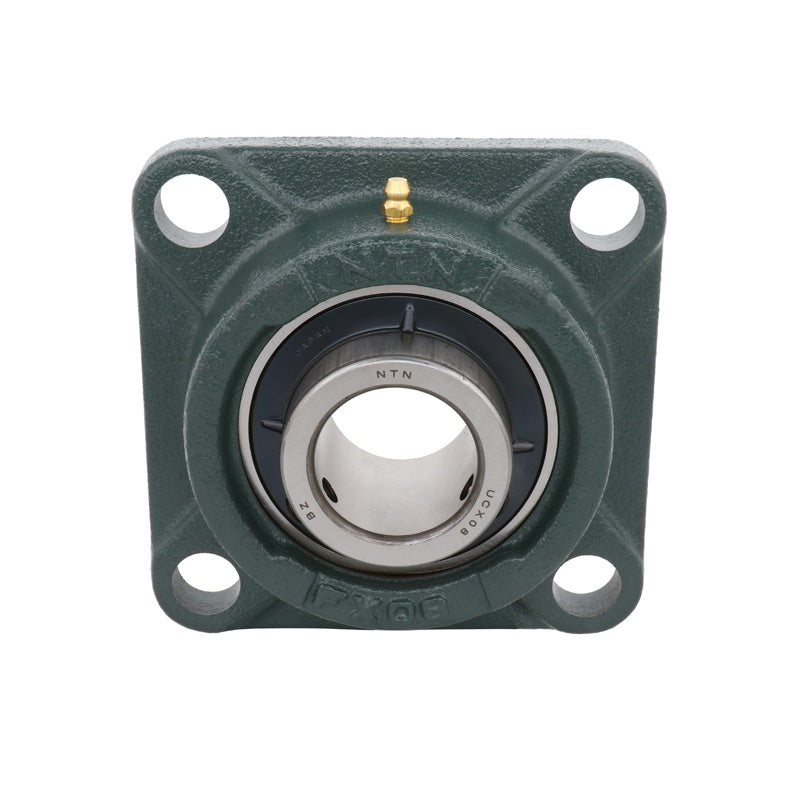

NTN UCFX08D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
- Regular price
- $53.61 ex VAT
- Sale price
- $53.61
- Regular price
-
In stock
Quantity Price Breaks
10+
$47.71
19+
$45.03
29+
$44.50
39+
$43.96
49+
$43.42
74+
$42.89
99+
$40.21
199+
$39.67
249+
$39.14
499+
$38.60
999+
$37.53
SKU:
UCFX08D1-NTN
NTN UCFX08D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
- Regular price
- $53.61 ex VAT
- Sale price
- $53.61
- Regular price
-
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| L | = | 137mm |
| J | = | 105mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 22mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 14mm | |
| A | = | 40mm |
| N | = | 19mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 52.2mm | |
| B | = | 49.2mm |
| S | = | 19mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 36 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 20.4 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.6 kN | |
| --- | = | Unit information |
| Mass | = | 2.3 kg |
