SKU: UCFX07D1-NTN

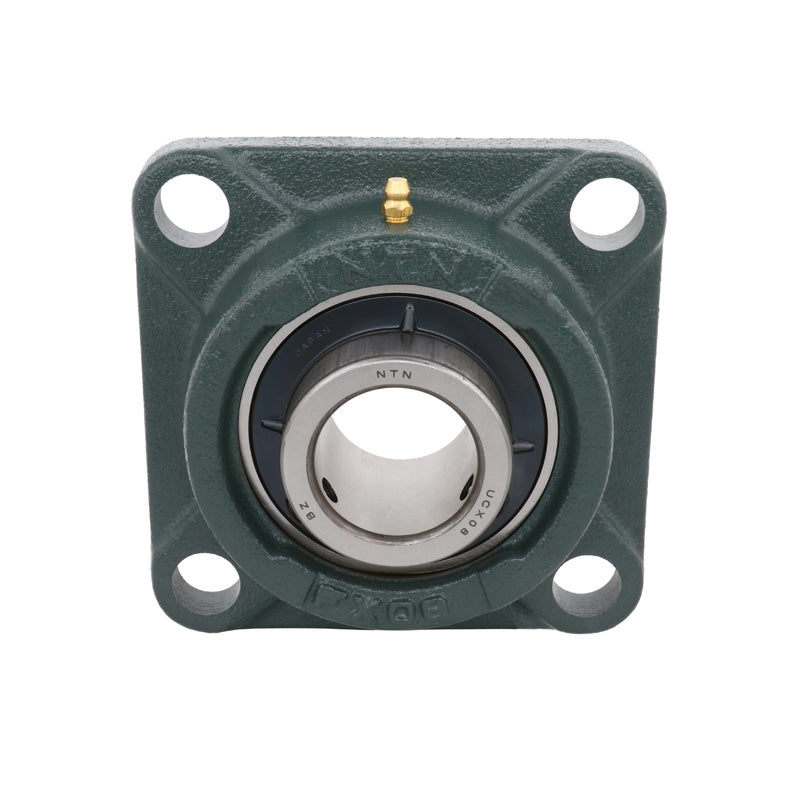

NTN UCFX07D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
- Regular price
- $47.97 ex VAT
- Sale price
- $47.97
- Regular price
-
In stock
Quantity Price Breaks
10+
$42.69
19+
$40.29
29+
$39.82
39+
$39.34
49+
$38.86
74+
$38.38
99+
$35.98
199+
$35.50
249+
$35.02
499+
$34.54
999+
$33.58
SKU:
UCFX07D1-NTN
NTN UCFX07D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
- Regular price
- $47.97 ex VAT
- Sale price
- $47.97
- Regular price
-
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| L | = | 130mm |
| J | = | 102mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 21mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 14mm | |
| A | = | 38mm |
| N | = | 16mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 51.2mm | |
| B | = | 49.2mm |
| S | = | 19mm |
| Fixing bolt | = | M14 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 32.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 17.8 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.24 kN | |
| --- | = | Unit information |
| Mass | = | 2.1 kg |
