SKU: UCFX.16.TS.CHAL

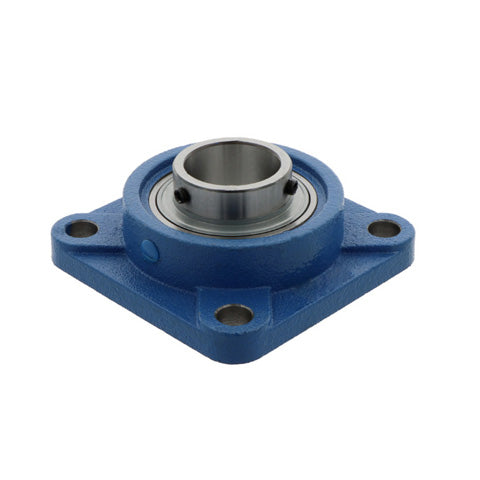

Challenge / FK UCFX16 Metric Cast Iron Four Bolt Square Flange Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $569.38 ex VAT
- Sale price
- $569.38
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFX16 Metric Cast Iron Four Bolt Square Flange Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $569.38 ex VAT
- Sale price
- $569.38
- Regular price
-
Description
UCFX Cast Iron Four Bolt Square Flange Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 80mm |
| Width a | = | 214mm |
| Recommended Bolt Centres L | = | 171mm |
| Back of Casting to Centre Line of Bearing i | = | 40mm |
| Depth of Casting at Bolt g | = | 24mm |
| Overall Casting Height l | = | 70mm |
| Bolt Hole Diameter s | = | 23mm |
| Back of Casting to Bearing Front z | = | 91.6mm |
| Bearing Insert Width Bi | = | 85.7mm |
| Back of Bearing to Centre Line n | = | 34.1mm |
| Bolt Size | = | M20 |
| Insert No | = | UCX16 |
| Housing No | = | FX16 |
