SKU: UCFX.07.TS.CHAL

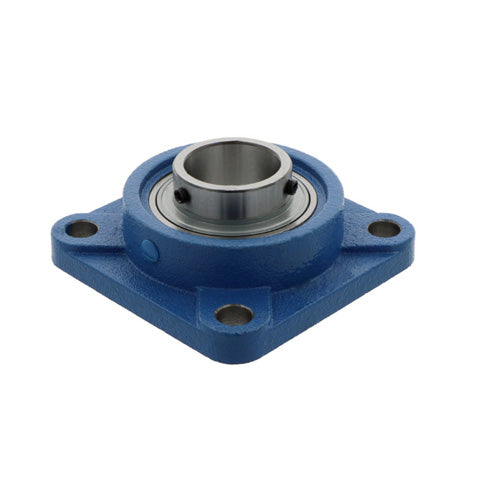

Challenge / FK UCFX07 Metric Cast Iron Four Bolt Square Flange Housing with 35mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $73.05 ex VAT
- Sale price
- $73.05
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFX07 Metric Cast Iron Four Bolt Square Flange Housing with 35mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $73.05 ex VAT
- Sale price
- $73.05
- Regular price
-
Description
UCFX Cast Iron Four Bolt Square Flange Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 35mm |
| Width a | = | 130mm |
| Recommended Bolt Centres L | = | 102mm |
| Back of Casting to Centre Line of Bearing i | = | 21mm |
| Depth of Casting at Bolt g | = | 14mm |
| Overall Casting Height l | = | 38mm |
| Bolt Hole Diameter s | = | 16mm |
| Back of Casting to Bearing Front z | = | 51.2mm |
| Bearing Insert Width Bi | = | 49.2mm |
| Back of Bearing to Centre Line n | = | 19mm |
| Bolt Size | = | M14 |
| Grub Screws x 2 | = | M8x1.0mm |
| Load Rating (Dynamic) | = | 2560kg |
| Load Rating (Static) | = | 1810kg |
| Max Speed | = | 2400 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UCX07 |
| Housing No | = | FX07 |
