SKU: UCFX.05

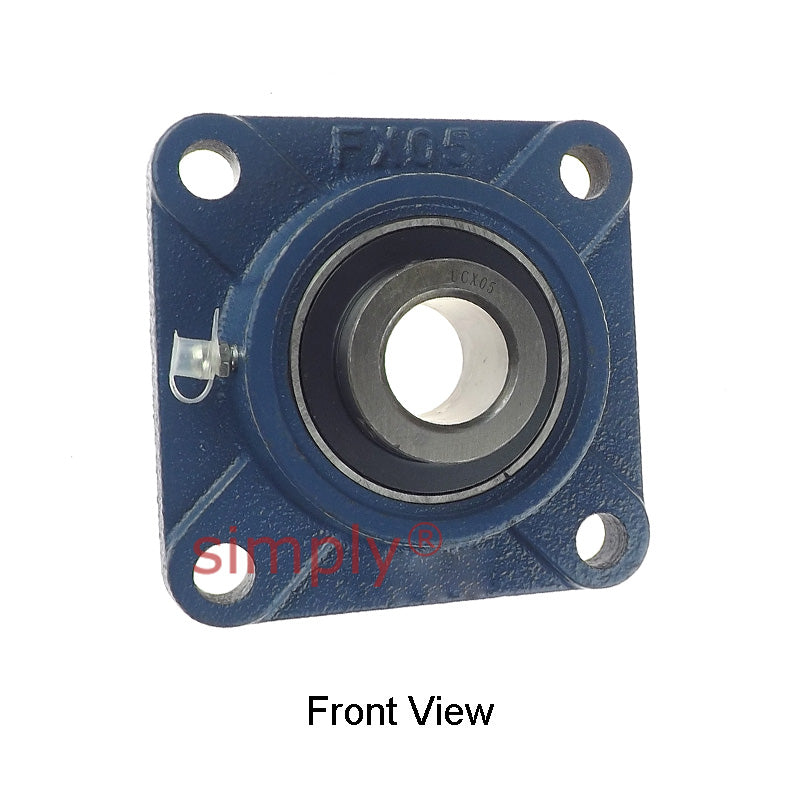

UCFX05 Metric Four Bolt Cast Iron Square Housing with 25mm Bore Insert
- Regular price
- $21.47 ex VAT
- Sale price
- $21.47
- Regular price
-
In stock
Quantity Price Breaks
3
$19.11
4
$18.03
9
$17.82
19
$17.61
49
$17.39
99
$17.18
499
$16.10
999
$15.89
1999
$15.67
2999
$15.46
4999
$15.03
SKU:
UCFX.05
UCFX05 Metric Four Bolt Cast Iron Square Housing with 25mm Bore Insert
- Regular price
- $21.47 ex VAT
- Sale price
- $21.47
- Regular price
-
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 25mm |
| a | = | 108mm |
| e | = | 83mm |
| i | = | 18mm |
| g | = | 13mm |
| L | = | 30mm |
| s | = | 12mm |
| Z | = | 40.2mm |
| Bi | = | 38.1mm |
| n | = | 15.9mm |
| Bolt Size | = | M10 |
| Weight | = | 1.035 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Rec max speed | = | 5300 rpm |
