SKU: UCFS326D1-NTN

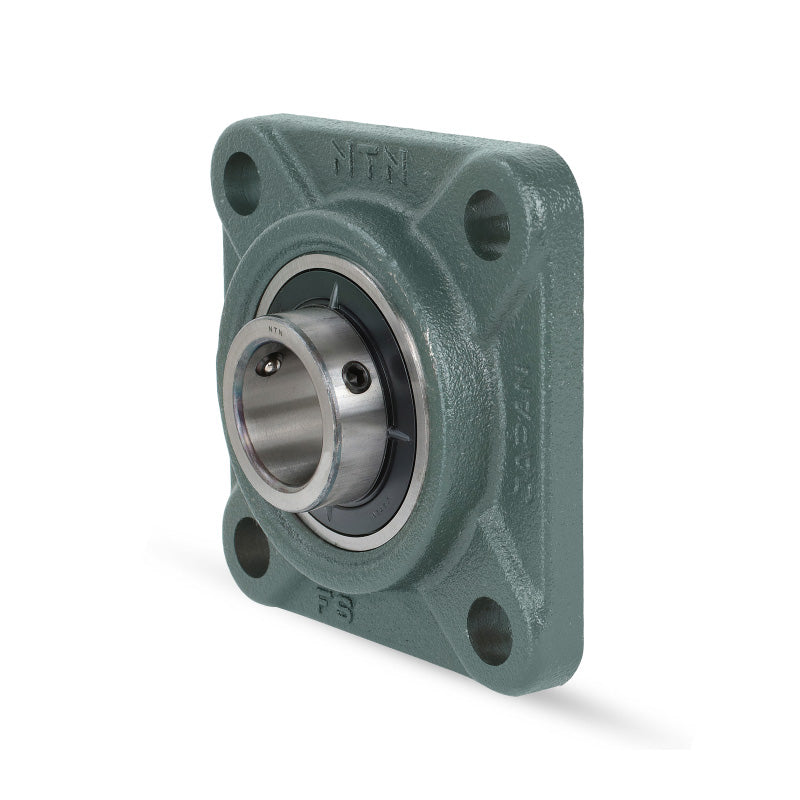

NTN UCFS326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
- Regular price
- $1,292.99 ex VAT
- Sale price
- $1,292.99
- Regular price
-
In stock
Quantity Price Breaks
10+
$1,150.76
19+
$1,086.11
29+
$1,073.18
39+
$1,060.25
49+
$1,047.32
74+
$1,034.39
99+
$969.74
199+
$956.81
249+
$943.88
499+
$930.95
999+
$905.09
SKU:
UCFS326D1-NTN
NTN UCFS326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
- Regular price
- $1,292.99 ex VAT
- Sale price
- $1,292.99
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 130mm |
| L | = | 410mm |
| J | = | 320mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 35mm | |
| N | = | 41mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 30mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 45mm | |
| A | = | 115mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 360mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 146mm | |
| B | = | 135mm |
| S | = | 54mm |
| Fixing bolt | = | M36 |
| Mass | = | 69 kg |
