SKU: UCFS324D1-NTN

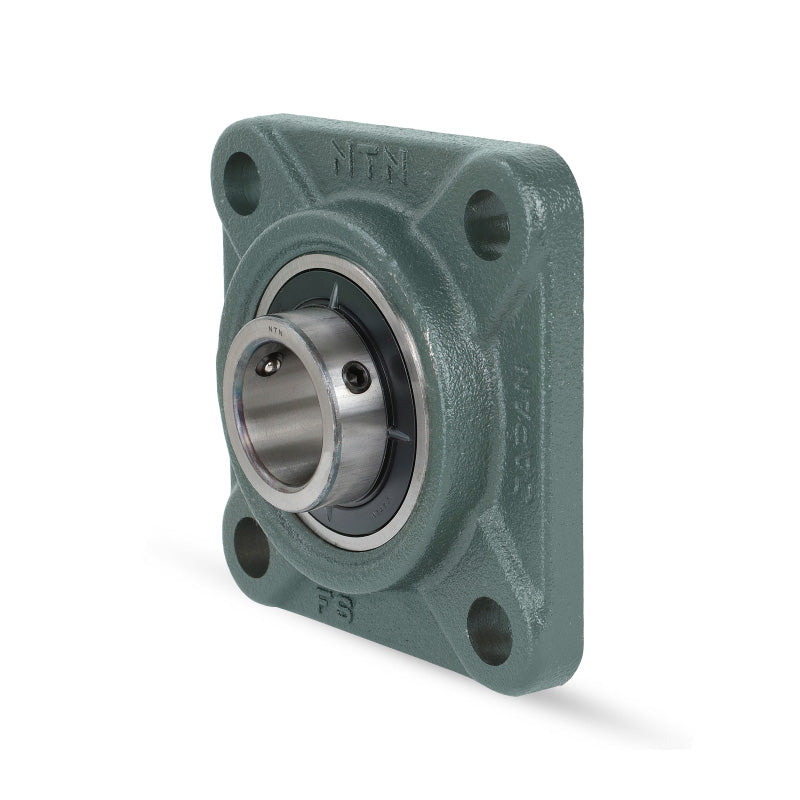

NTN UCFS324D1 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
- Regular price
- $977.01 ex VAT
- Sale price
- $977.01
- Regular price
-
In stock
Quantity Price Breaks
10+
$869.54
19+
$820.69
29+
$810.92
39+
$801.15
49+
$791.38
74+
$781.61
99+
$732.76
199+
$722.99
249+
$713.22
499+
$703.45
999+
$683.91
SKU:
UCFS324D1-NTN
NTN UCFS324D1 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
- Regular price
- $977.01 ex VAT
- Sale price
- $977.01
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 120mm |
| L | = | 370mm |
| J | = | 290mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 35mm | |
| N | = | 41mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 30mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 40mm | |
| A | = | 110mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 330mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 140mm | |
| B | = | 126mm |
| S | = | 51mm |
| Fixing bolt | = | M36 |
| Mass | = | 52 kg |
