SKU: UCFS320-SNR

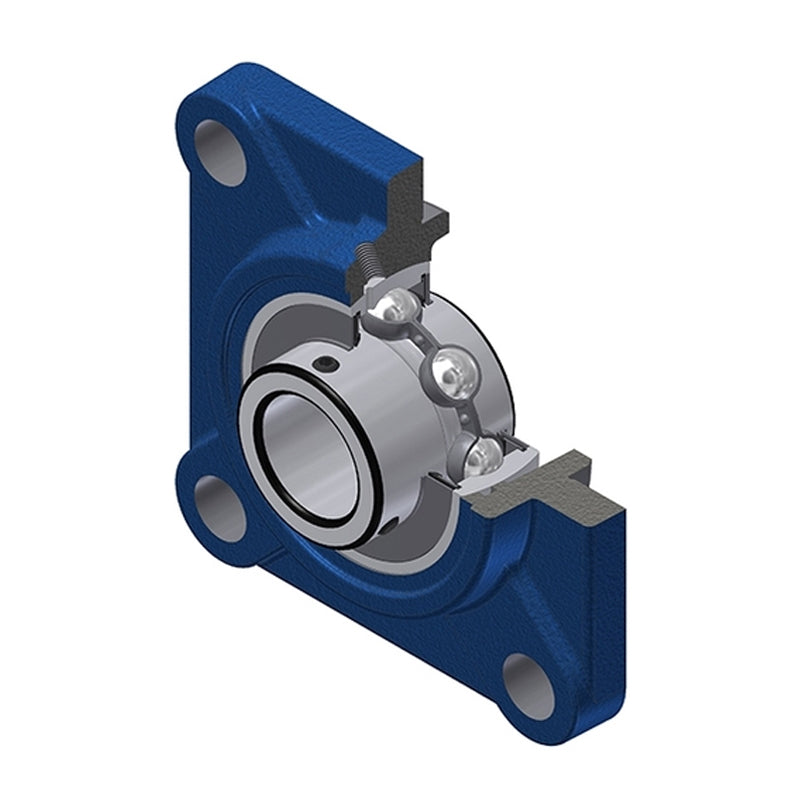

SNR UCFS320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
- Regular price
- $510.61 ex VAT
- Sale price
- $510.61
- Regular price
-
In stock
Quantity Price Breaks
10+
$454.44
19+
$428.91
29+
$423.81
39+
$418.70
49+
$413.59
74+
$408.49
99+
$382.96
199+
$377.85
249+
$372.75
499+
$367.64
999+
$357.43
SKU:
UCFS320-SNR
SNR UCFS320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
- Regular price
- $510.61 ex VAT
- Sale price
- $510.61
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical

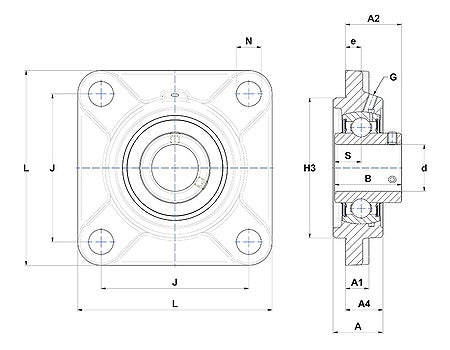

| --- | = | Dimensions |
| Shaft diameter d | = | 100mm |
| A | = | 94mm |
| A1 | = | 32mm |
| A2 | = | 105mm |
| A4 | = | 74mm |
| B | = | 108mm |
| e | = | 39mm |
| H3 | = | 260mm |
| J | = | 242mm |
| L | = | 310mm |
| N | = | 38mm |
| S | = | 42mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 171.6 kN |
| Static load C0 | = | 140 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 75 Nm |
| Mass | = | 29.4 kg |
