SKU: UCFS317D1-NTN

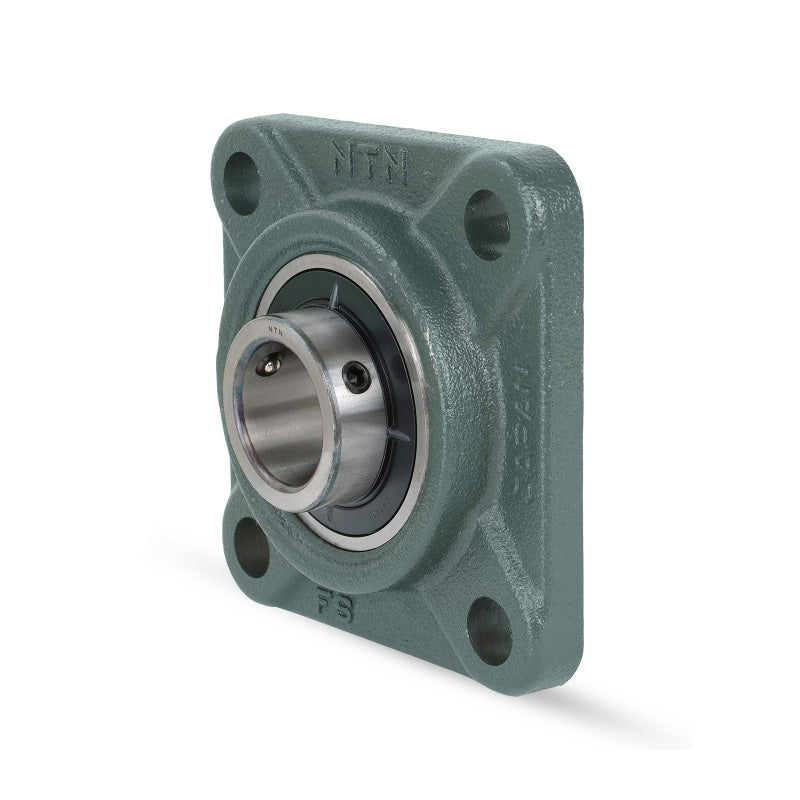

NTN UCFS317D1 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- $348.79 ex VAT
- Sale price
- $348.79
- Regular price
-
In stock
Quantity Price Breaks
10+
$310.42
19+
$292.98
29+
$289.50
39+
$286.01
49+
$282.52
74+
$279.03
99+
$261.59
199+
$258.10
249+
$254.62
499+
$251.13
999+
$244.15
SKU:
UCFS317D1-NTN
NTN UCFS317D1 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- $348.79 ex VAT
- Sale price
- $348.79
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 85mm |
| L | = | 260mm |
| J | = | 204mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 24mm | |
| N | = | 31mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 20mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 27mm | |
| A | = | 74mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 220mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 100mm | |
| B | = | 96mm |
| S | = | 40mm |
| Fixing bolt | = | M27 |
| Mass | = | 17 kg |
