SKU: UCFS315D1-NTN

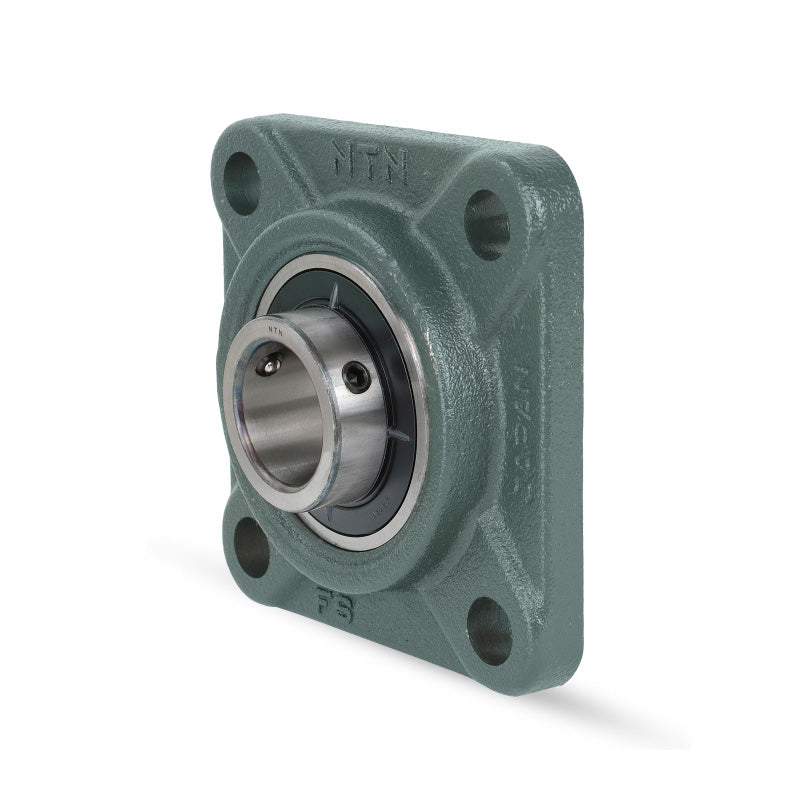

NTN UCFS315D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
- Regular price
- $258.35 ex VAT
- Sale price
- $258.35
- Regular price
-
In stock
Quantity Price Breaks
10+
$229.93
19+
$217.01
29+
$214.43
39+
$211.85
49+
$209.26
74+
$206.68
99+
$193.76
199+
$191.18
249+
$188.60
499+
$186.01
999+
$180.85
SKU:
UCFS315D1-NTN
NTN UCFS315D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
- Regular price
- $258.35 ex VAT
- Sale price
- $258.35
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 75mm |
| L | = | 236mm |
| J | = | 184mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 21mm | |
| N | = | 25mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 18mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 25mm | |
| A | = | 66mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 200mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 89mm | |
| B | = | 82mm |
| S | = | 32mm |
| Fixing bolt | = | M22 |
| Mass | = | 12 kg |
