SKU: UCFS312D1-NTN

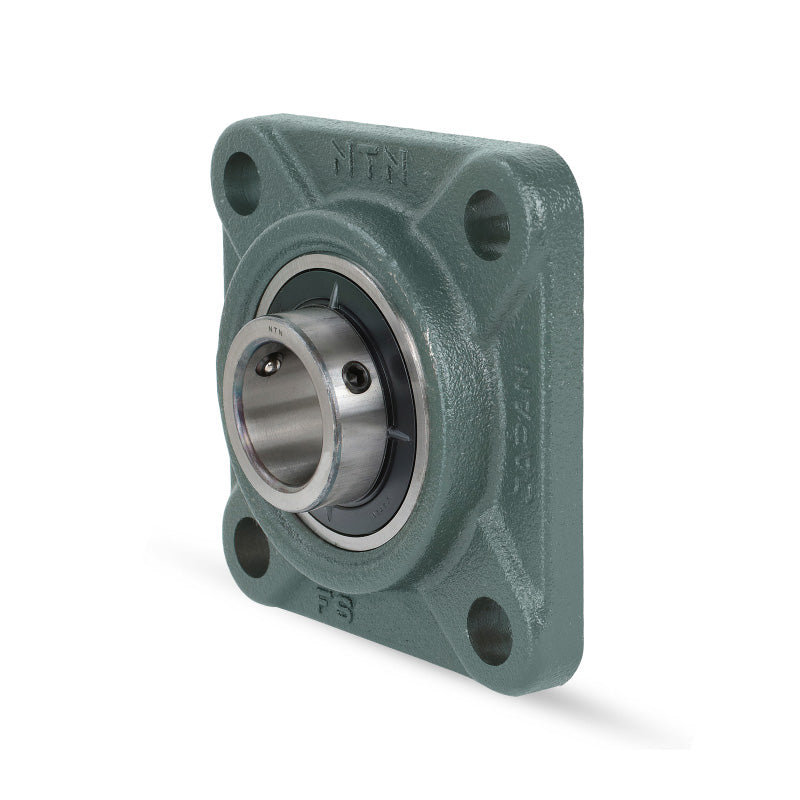

NTN UCFS312D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- $164.82 ex VAT
- Sale price
- $164.82
- Regular price
-
In stock
Quantity Price Breaks
10+
$146.69
19+
$138.45
29+
$136.80
39+
$135.15
49+
$133.50
74+
$131.86
99+
$123.62
199+
$121.97
249+
$120.32
499+
$118.67
999+
$115.37
SKU:
UCFS312D1-NTN
NTN UCFS312D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- $164.82 ex VAT
- Sale price
- $164.82
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 60mm |
| L | = | 195mm |
| J | = | 150mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 19mm | |
| N | = | 23mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 14mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 22mm | |
| A | = | 56mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 160mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 78mm | |
| B | = | 71mm |
| S | = | 26mm |
| Fixing bolt | = | M20 |
| Mass | = | 7 kg |
