SKU: UCFS311D1-NTN

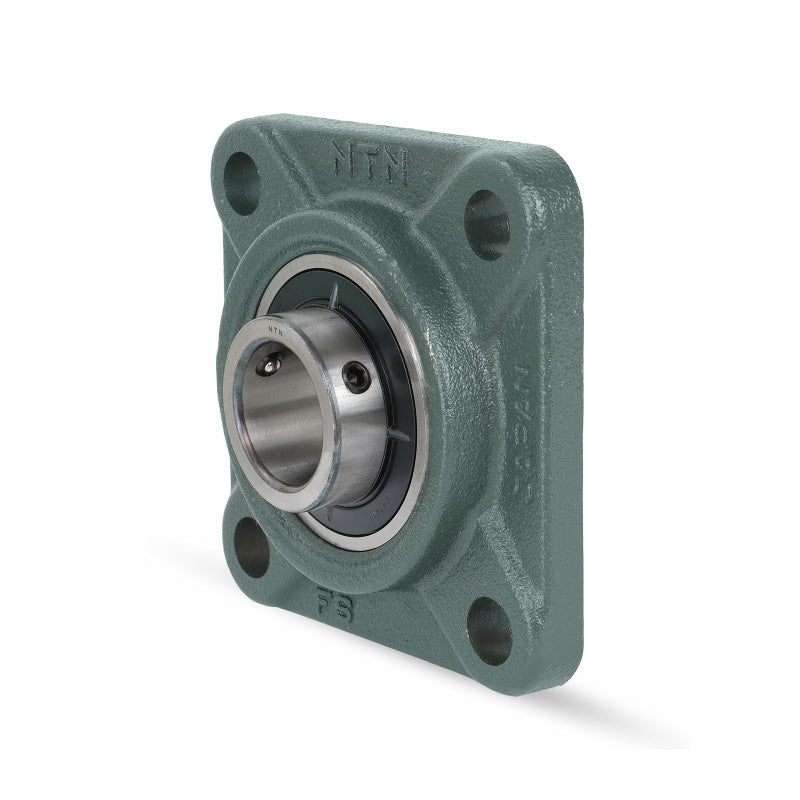

NTN UCFS311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- $138.09 ex VAT
- Sale price
- $138.09
- Regular price
-
In stock
Quantity Price Breaks
10+
$122.90
19+
$116.00
29+
$114.61
39+
$113.23
49+
$111.85
74+
$110.47
99+
$103.57
199+
$102.19
249+
$100.81
499+
$99.42
999+
$96.66
SKU:
UCFS311D1-NTN
NTN UCFS311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- $138.09 ex VAT
- Sale price
- $138.09
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing

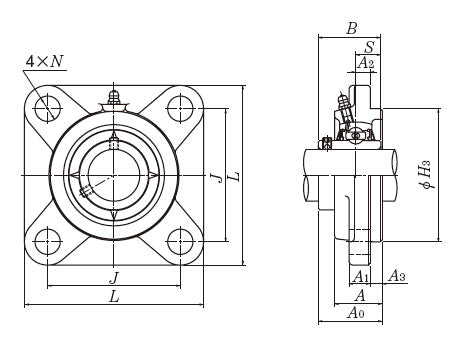

Technical
| Shaft diameter | = | 55mm |
| L | = | 185mm |
| J | = | 140mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 17mm | |
| N | = | 23mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 13mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 20mm | |
| A | = | 52mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 150mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 71mm | |
| B | = | 66mm |
| S | = | 25mm |
| Fixing bolt | = | M20 |
| Mass | = | 5.9 kg |
