SKU: UCFS310D1-NTN

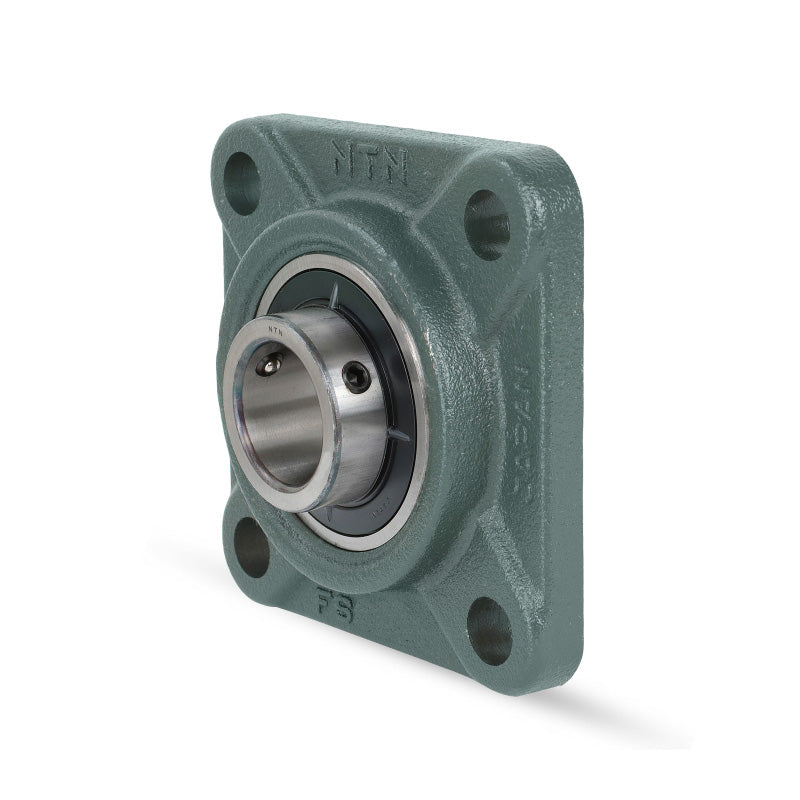

NTN UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $113.59 ex VAT
- Sale price
- $113.59
- Regular price
-
In stock
Quantity Price Breaks
10+
$101.10
19+
$95.42
29+
$94.28
39+
$93.14
49+
$92.01
74+
$90.87
99+
$85.19
199+
$84.06
249+
$82.92
499+
$81.78
999+
$79.51
SKU:
UCFS310D1-NTN
NTN UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $113.59 ex VAT
- Sale price
- $113.59
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 50mm |
| L | = | 175mm |
| J | = | 132mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 16mm | |
| N | = | 23mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 12mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 19mm | |
| A | = | 48mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 140mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 67mm | |
| B | = | 61mm |
| S | = | 22mm |
| Fixing bolt | = | M20 |
| Mass | = | 5 kg |
