SKU: UCFS308D1-NTN

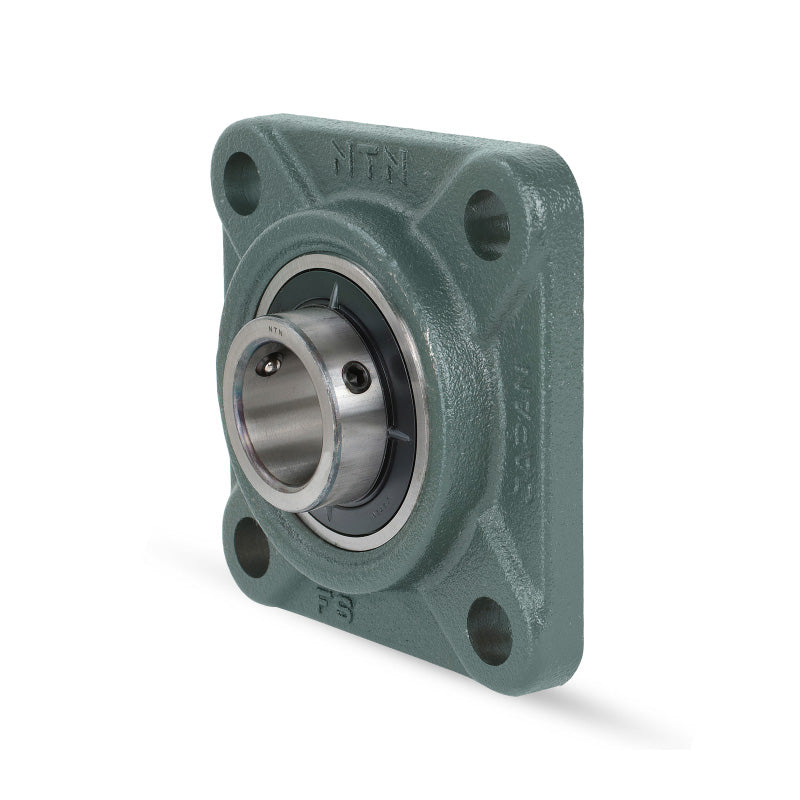

NTN UCFS308D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- $85.75 ex VAT
- Sale price
- $85.75
- Regular price
-
In stock
Quantity Price Breaks
10+
$76.32
19+
$72.03
29+
$71.17
39+
$70.32
49+
$69.46
74+
$68.60
99+
$64.31
199+
$63.46
249+
$62.60
499+
$61.74
999+
$60.03
SKU:
UCFS308D1-NTN
NTN UCFS308D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- $85.75 ex VAT
- Sale price
- $85.75
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 40mm |
| L | = | 150mm |
| J | = | 112mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 13mm | |
| N | = | 19mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 10mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 17mm | |
| A | = | 40mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 115mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 56mm | |
| B | = | 52mm |
| S | = | 19mm |
| Fixing bolt | = | M16 |
| Mass | = | 3.1 kg |
