SKU: UCFS306D1-NTN

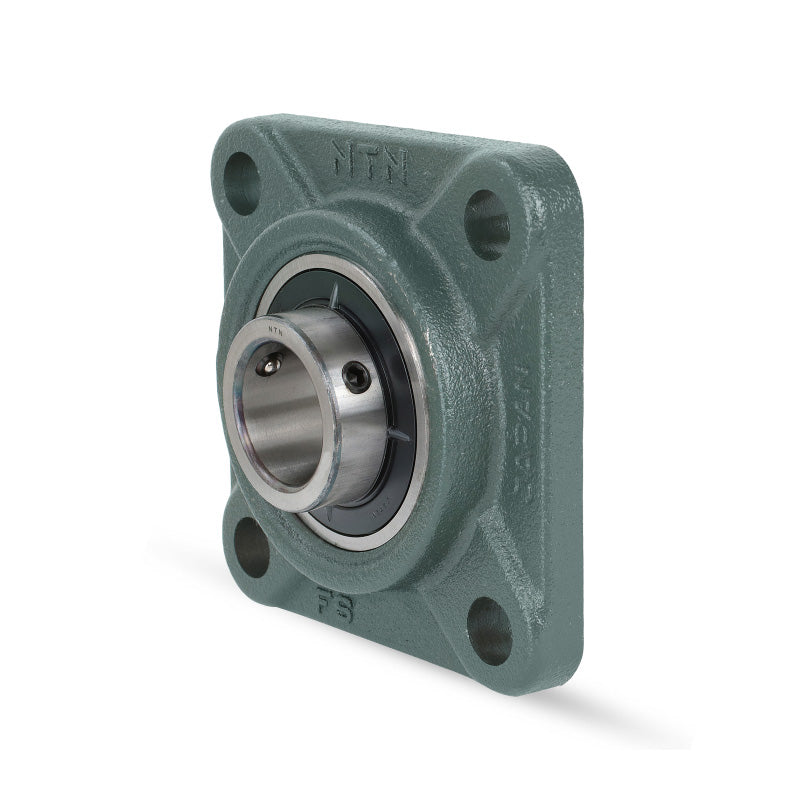

NTN UCFS306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- $64.15 ex VAT
- Sale price
- $64.15
- Regular price
-
In stock
Quantity Price Breaks
10+
$57.09
19+
$53.89
29+
$53.24
39+
$52.60
49+
$51.96
74+
$51.32
99+
$48.11
199+
$47.47
249+
$46.83
499+
$46.19
999+
$44.91
SKU:
UCFS306D1-NTN
NTN UCFS306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- $64.15 ex VAT
- Sale price
- $64.15
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 30mm |
| L | = | 125mm |
| J | = | 95mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 10mm | |
| N | = | 16mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 8mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 15mm | |
| A | = | 32mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 90mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 44mm | |
| B | = | 43mm |
| S | = | 17mm |
| Fixing bolt | = | M14 |
| Mass | = | 1.8 kg |
