SKU: UCFL.218-56

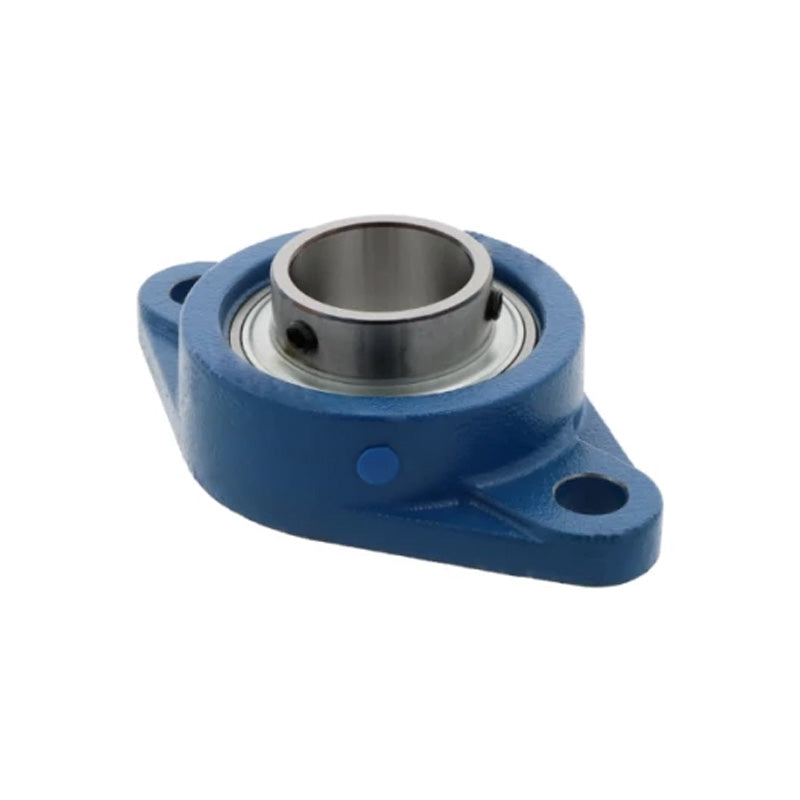

UCFL218-56 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/2 inch Bore Insert
- Regular price
- $437.93 ex VAT
- Sale price
- $437.93
- Regular price
-
Not in stock
Quantity Price Breaks
3
$389.76
4
$367.86
9
$363.48
19
$359.10
49
$354.72
99
$350.34
499
$328.45
999
$324.07
1999
$319.69
2999
$315.31
4999
$306.55
SKU:
UCFL.218-56
UCFL218-56 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/2 inch Bore Insert
- Regular price
- $437.93 ex VAT
- Sale price
- $437.93
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 3-1/2 inch |
| a | = | 305mm |
| e | = | 248mm |
| i | = | 36mm |
| g | = | 22mm |
| L | = | 63mm |
| S | = | 25mm |
| b | = | 190mm |
| z | = | 87.6mm |
| B1 | = | 85.7mm |
| n | = | 34.1mm |
| Bolt Size | = | M22 |
| Weight | = | 12.1 kg |
| Dynamic load | = | 7500 kgf |
| Static load | = | 6170 kgf |
