SKU: UCFL.214

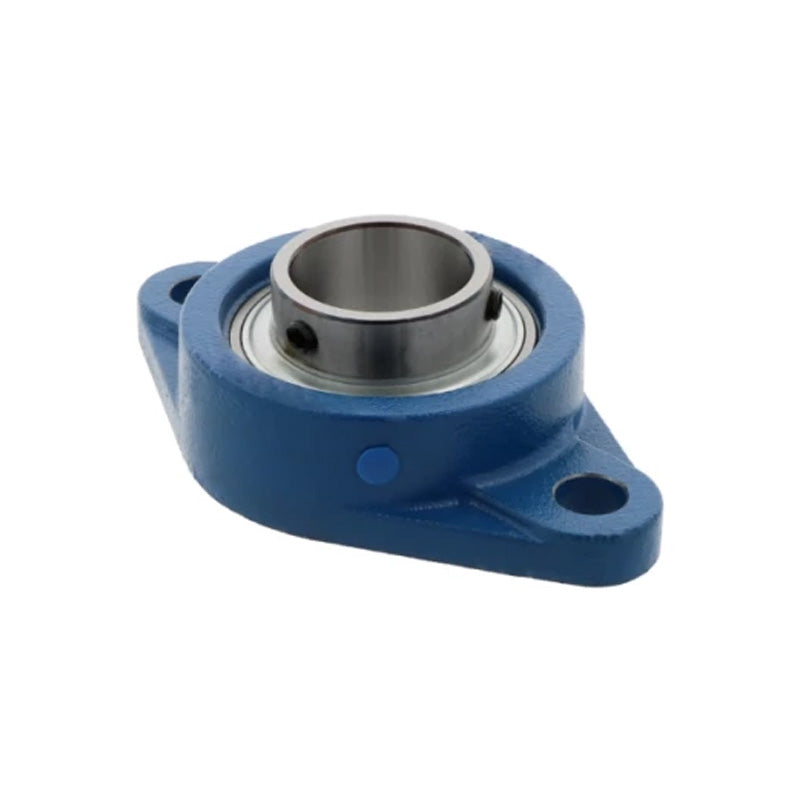

UCFL214 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert
- Regular price
- $169.38 ex VAT
- Sale price
- $169.38
- Regular price
-
In stock
Quantity Price Breaks
3
$150.75
4
$142.28
9
$140.59
19
$138.89
49
$137.20
99
$135.50
499
$127.04
999
$125.34
1999
$123.65
2999
$121.95
4999
$118.57
SKU:
UCFL.214
UCFL214 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert
- Regular price
- $169.38 ex VAT
- Sale price
- $169.38
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 70mm |
| a | = | 265mm |
| e | = | 216mm |
| i | = | 31mm |
| g | = | 20mm |
| L | = | 54mm |
| S | = | 23mm |
| b | = | 160mm |
| z | = | 75.4mm |
| B1 | = | 74.6mm |
| n | = | 30.2mm |
| Bolt Size | = | M20 |
| Weight | = | 5.9 kg |
| Dynamic load | = | 4870 kgf |
| Static load | = | 3810 kgf |
