SKU: UCFL.213.TS.CHAL

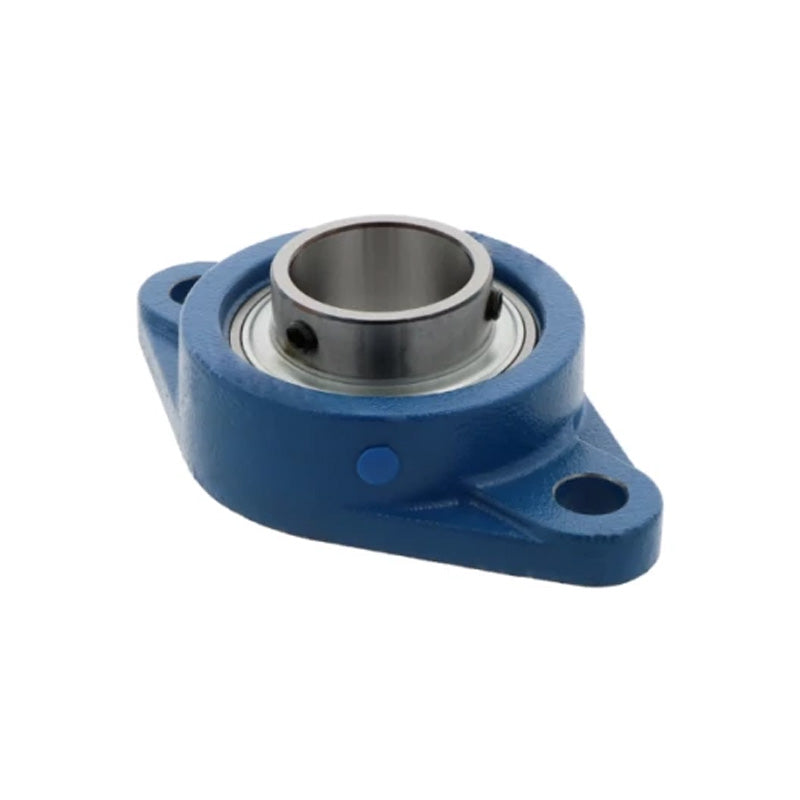

Challenge / FK UCFL213 Metric Cast Iron Two Bolt Oval Flange Housing with 65mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $327.01 ex VAT
- Sale price
- $327.01
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFL213 Metric Cast Iron Two Bolt Oval Flange Housing with 65mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $327.01 ex VAT
- Sale price
- $327.01
- Regular price
-
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 65mm |
| Casting Length a | = | 258mm |
| Recommended Bolt Centres L | = | 210mm |
| Back of Casting to Centre Line of Bearing i | = | 30mm |
| Depth of Casting at Bolt g | = | 22mm |
| Overall Casting Height l | = | 50mm |
| Bolt Hole Diameter s | = | 23mm |
| Casting Width b | = | 155mm |
| Back of Casting to Bearing Front z | = | 69.7mm |
| Bearing Insert Width Bi | = | 65.1mm |
| Back of Bearing to Centre Line n | = | 25.4mm |
| Bolt Size | = | M20 |
| Grub Screws x 2 | = | M10x1.25mm |
| Load Rating (Dynamic) | = | 4480kg |
| Load Rating (Static) | = | 3470kg |
| Max Speed | = | 1400 rev/min |
| Grease Nipple Thread Size | = | M8 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UC213 |
| Housing No | = | FL213 |
