SKU: UCFL.213-40

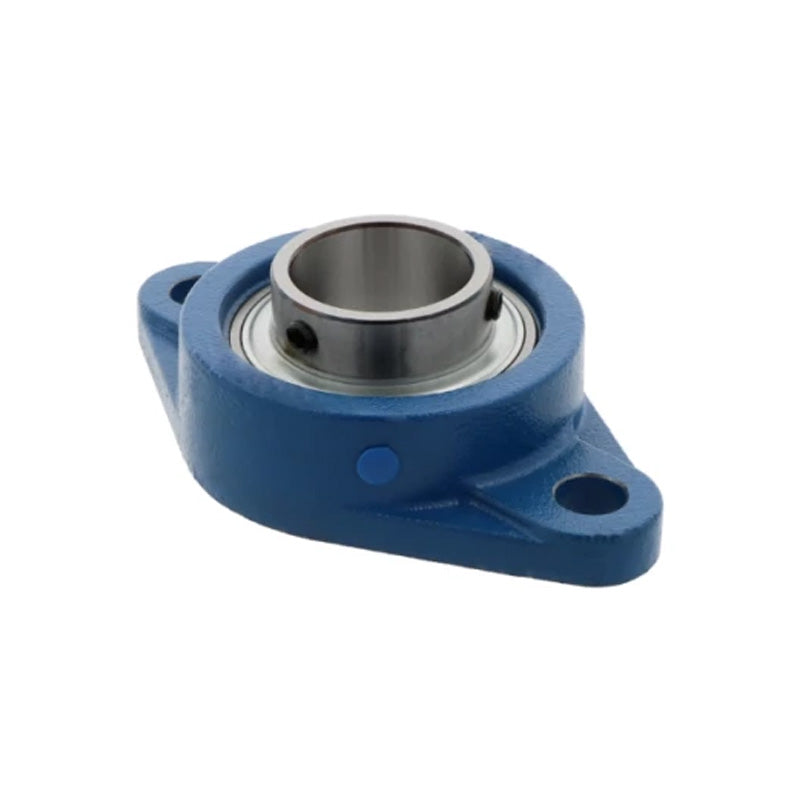

UCFL213-40 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/2 inch Bore Insert
- Regular price
- $166.35 ex VAT
- Sale price
- $166.35
- Regular price
-
Not in stock
Quantity Price Breaks
3
$148.05
4
$139.73
9
$138.07
19
$136.41
49
$134.74
99
$133.08
499
$124.76
999
$123.10
1999
$121.44
2999
$119.77
4999
$116.45
SKU:
UCFL.213-40
UCFL213-40 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/2 inch Bore Insert
- Regular price
- $166.35 ex VAT
- Sale price
- $166.35
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 2-1/2 inch |
| a | = | 258mm |
| e | = | 210mm |
| i | = | 30mm |
| g | = | 20mm |
| L | = | 501mm |
| S | = | 23mm |
| b | = | 155mm |
| z | = | 69.7mm |
| B1 | = | 65.1mm |
| n | = | 25.4mm |
| Bolt Size | = | M20 |
| Weight | = | 5.1 kg |
| Dynamic load | = | 4480 kgf |
| Static load | = | 3470 kgf |
