SKU: UCFL.212-38

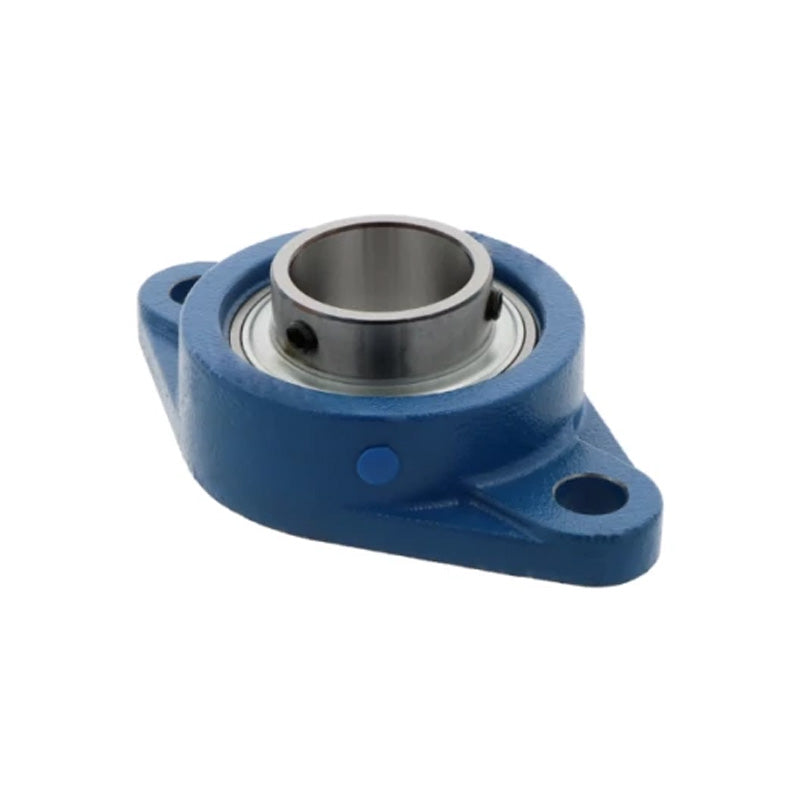

UCFL212-38 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/8 inch Bore Insert
- Regular price
- $89.04 ex VAT
- Sale price
- $89.04
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
$79.25
4
$74.79
9
$73.90
19
$73.01
49
$72.12
99
$71.23
499
$66.78
999
$65.89
1999
$65.00
2999
$64.11
4999
$62.33
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 2-3/8 inch |
| a | = | 250mm |
| e | = | 202mm |
| i | = | 29mm |
| g | = | 18mm |
| L | = | 48mm |
| S | = | 23mm |
| b | = | 140mm |
| z | = | 68.7mm |
| B1 | = | 65.1mm |
| n | = | 25.4mm |
| Bolt Size | = | M20 |
| Weight | = | 4.1 kg |
| Dynamic load | = | 4100 kgf |
| Static load | = | 3150 kgf |
