SKU: UCFE214-SNR

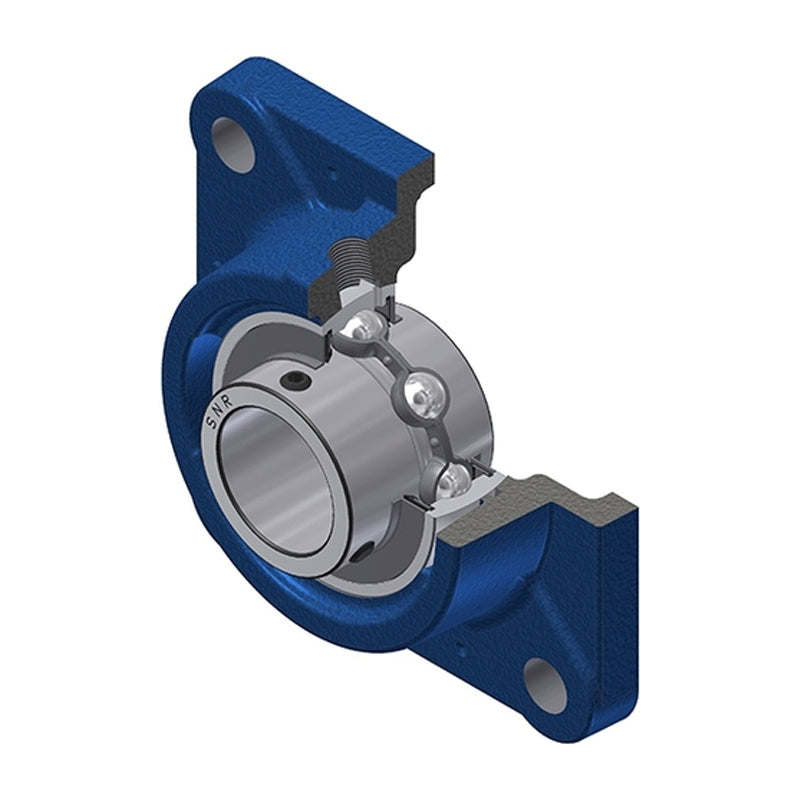

SNR UCFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
- Regular price
- $140.56 ex VAT
- Sale price
- $140.56
- Regular price
-
In stock
Quantity Price Breaks
10+
$125.10
19+
$118.07
29+
$116.66
39+
$115.26
49+
$113.85
74+
$112.45
99+
$105.42
199+
$104.01
249+
$102.61
499+
$101.20
999+
$98.39
SKU:
UCFE214-SNR
SNR UCFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
- Regular price
- $140.56 ex VAT
- Sale price
- $140.56
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 70mm |
| A | = | 56mm |
| A1 | = | 18mm |
| A2 | = | 82.4mm |
| B | = | 74.6mm |
| e | = | 38mm |
| J | = | 150mm |
| L | = | 188mm |
| N | = | 18mm |
| S | = | 30.2mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 45 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 6.13 kg |
