SKU: UCFE213-40-SNR

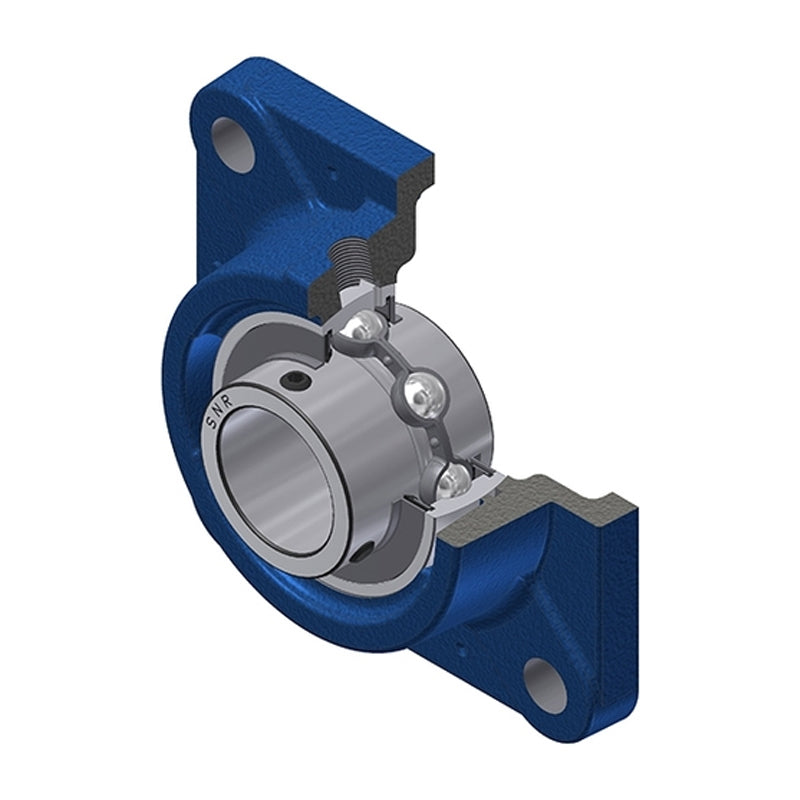

SNR UCFE213-40 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
- Regular price
- $108.12 ex VAT
- Sale price
- $108.12
- Regular price
-
In stock
Quantity Price Breaks
10+
$96.23
19+
$90.82
29+
$89.74
39+
$88.66
49+
$87.58
74+
$86.50
99+
$81.09
199+
$80.01
249+
$78.93
499+
$77.85
999+
$75.68
SKU:
UCFE213-40-SNR
SNR UCFE213-40 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
- Regular price
- $108.12 ex VAT
- Sale price
- $108.12
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 2-1/2 inch |
| A | = | 56mm |
| A1 | = | 18mm |
| A2 | = | 77.7mm |
| B | = | 65.1mm |
| e | = | 38mm |
| J | = | 150mm |
| L | = | 188mm |
| N | = | 18mm |
| S | = | 25.4mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 57.2 kN |
| Static load C0 | = | 40 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 16.8 Nm |
| Mass | = | 6.42 kg |
