SKU: UCFE209N-SNR

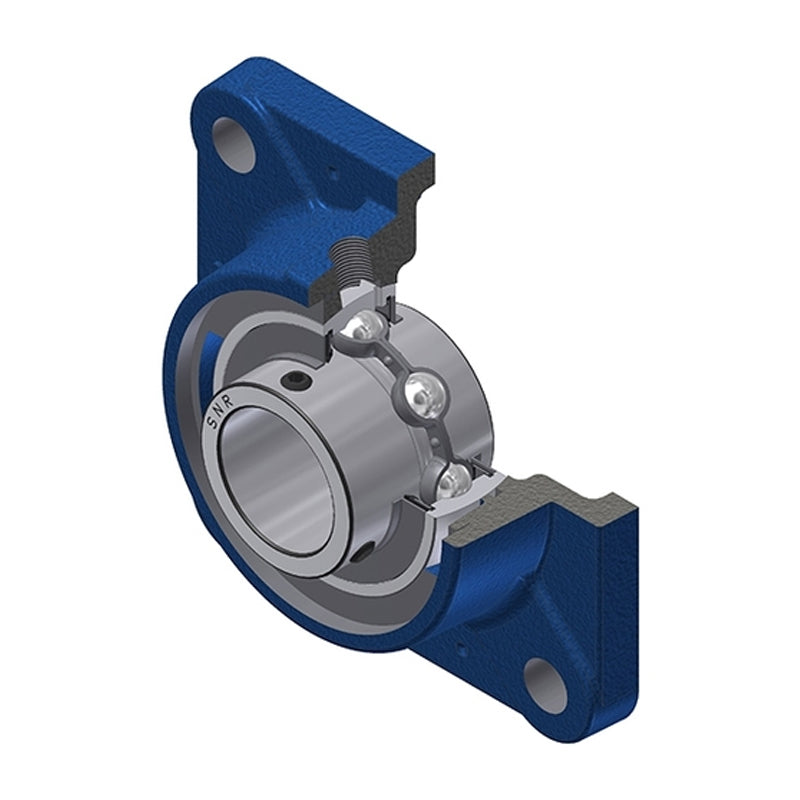

SNR UCFE209N Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- $67.46 ex VAT
- Sale price
- $67.46
- Regular price
-
In stock
Quantity Price Breaks
10+
$60.04
19+
$56.67
29+
$55.99
39+
$55.32
49+
$54.64
74+
$53.97
99+
$50.60
199+
$49.92
249+
$49.25
499+
$48.57
999+
$47.22
SKU:
UCFE209N-SNR
SNR UCFE209N Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- $67.46 ex VAT
- Sale price
- $67.46
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| A | = | 40mm |
| A1 | = | 13mm |
| A2 | = | 54.2mm |
| B | = | 49.2mm |
| e | = | 24mm |
| J | = | 105mm |
| L | = | 137mm |
| N | = | 14mm |
| S | = | 19mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.19 kg |
