SKU: UCFE207N-SNR

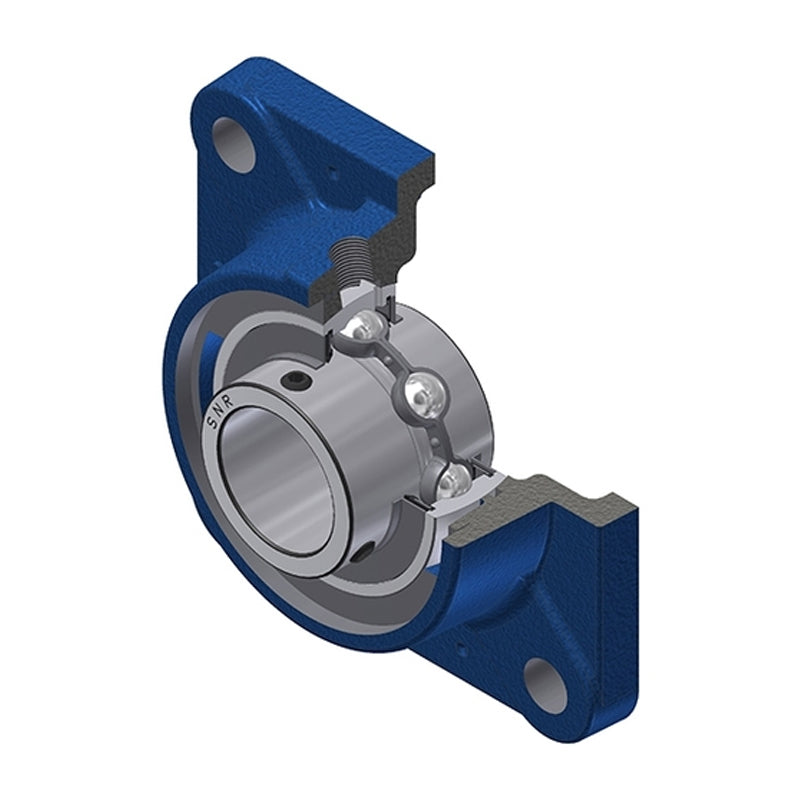

SNR UCFE207N Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- $59.68 ex VAT
- Sale price
- $59.68
- Regular price
-
In stock
Quantity Price Breaks
10+
$53.12
19+
$50.13
29+
$49.53
39+
$48.94
49+
$48.34
74+
$47.74
99+
$44.76
199+
$44.16
249+
$43.57
499+
$42.97
999+
$41.78
SKU:
UCFE207N-SNR
SNR UCFE207N Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- $59.68 ex VAT
- Sale price
- $59.68
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| A | = | 36mm |
| A1 | = | 12.5mm |
| A2 | = | 46.4mm |
| B | = | 42.9mm |
| e | = | 21mm |
| J | = | 92mm |
| L | = | 118mm |
| N | = | 14mm |
| S | = | 17.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.54 kg |
