SKU: UCFCX14D1-NTN

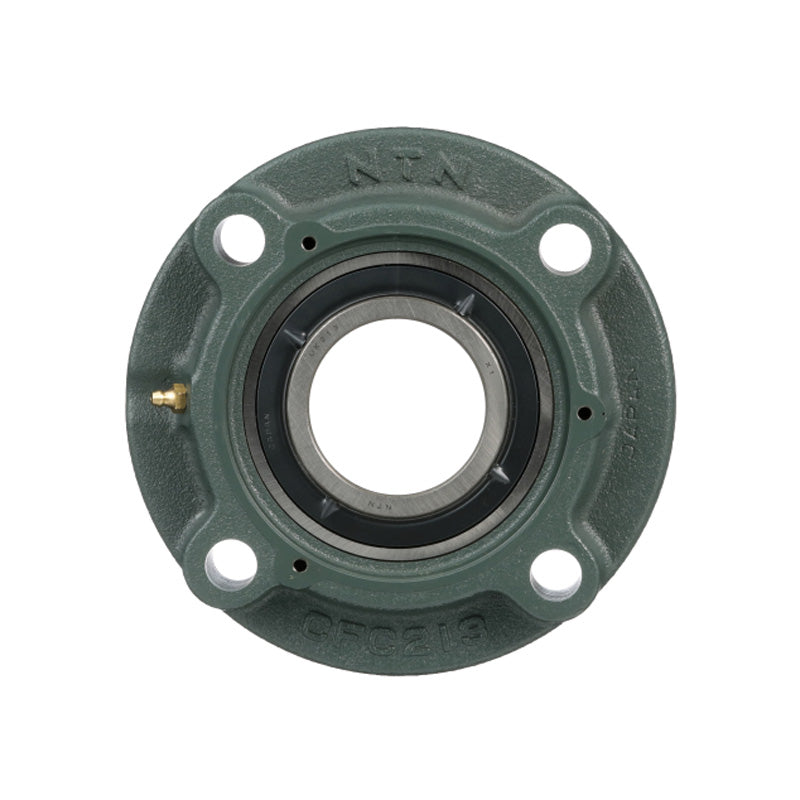

NTN UCFCX14D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
- Regular price
- $144.78 ex VAT
- Sale price
- $144.78
- Regular price
-
In stock
Quantity Price Breaks
10+
$128.85
19+
$121.62
29+
$120.17
39+
$118.72
49+
$117.27
74+
$115.82
99+
$108.59
199+
$107.14
249+
$105.69
499+
$104.24
999+
$101.35
SKU:
UCFCX14D1-NTN
NTN UCFCX14D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
- Regular price
- $144.78 ex VAT
- Sale price
- $144.78
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 70mm |
| L | = | 222mm |
| J | = | 190mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 134.4mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 14mm | |
| N | = | 19mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 20mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 36mm | |
| A | = | 56mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 164mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 78.5mm | |
| B | = | 77.8mm |
| S | = | 33.3mm |
| F (Min.) | = | 100mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 73.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 49.5 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.8 kN | |
| --- | = | Unit information |
| Mass | = | 7.3 kg |
